SKU: 719USSC20 .A21.0/0.DB.M-UKF

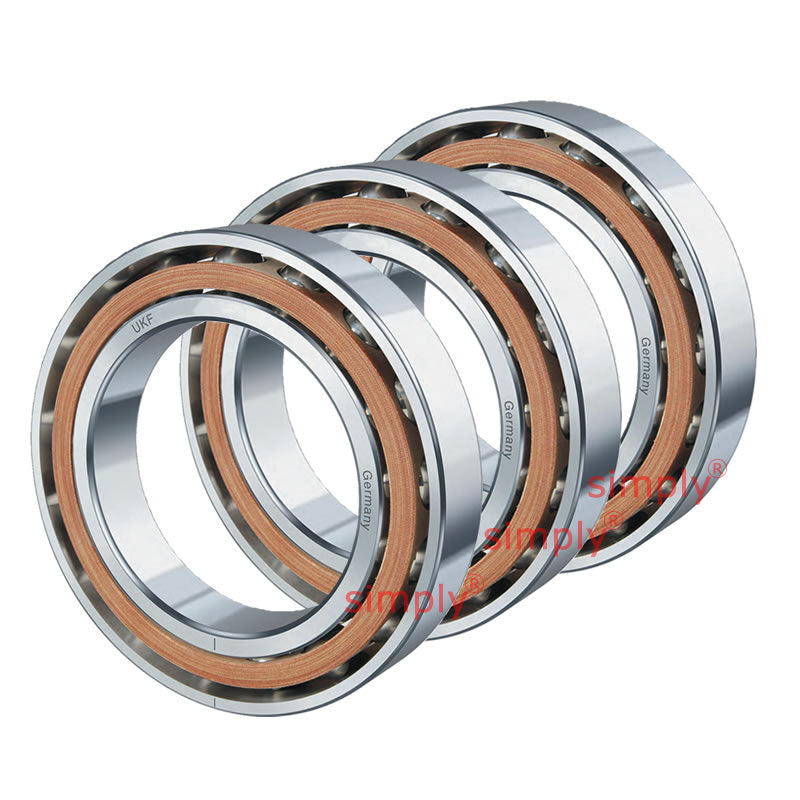

UKF 719USSC20A2100DBM Super Precision Single Row Angular Contact Spindle Bearing 20x37x9mm

Name: UKF 719USSC20A2100DBM Super Precision Single Row Angular Contact Spindle Bearing 20x37x9mm
Brand: UKF
SKU: 719USSC20 .A21.0/0.DB.M-UKF
Price: 309.00 CHF
Availability: InStock

CHF 309.00 ex VAT

Sale Sold out

Equivalent to: 719USSC20 .A21.0/0.DB.M

In stock

Price Break

3+ CHF 246.02

5+ CHF 232.20

10+ CHF 229.43

25+ CHF 226.67

49+ CHF 223.90

74+ CHF 221.14

99+ CHF 207.32

199+ CHF 204.55

249+ CHF 201.79

499+ CHF 199.03

999+ CHF 193.50

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Equivalent: 719USSC20 .A21.0/0.DB.M

Brand / Quality:: UKF - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 37mm
Width:: 9mm
Seals / Shields:: None
Style:: Single Row Angular Contact Spindle Bearing
Contact Angle:: 21 Degree contact angle
Bearing Preload:: Medium preload

Technical

d	20mm
D	37mm
B	9mm
Dynamic load Co	2255 N
Static load C	4900 N
Speed in Grease	46200 rpm
Speed in Oil	71400 rpm
r<sub>a</sub>	0.15mm
d<sub>a</sub>	23mm
D<sub>a</sub>	34mm
Axial Preload F<sub>v</sub> L	60 N
Axial Preload F<sub>v</sub> M	180 N
Axial Preload F<sub>v</sub> S	360 N
Axial Rigidity R<sub>a</sub> L	48 N/μm
Axial Rigidity R<sub>a</sub> M	69 N/μm
Axial Rigidity R<sub>a</sub> S	18 N/μm
Radial Rigidity R<sub>r</sub> L	196 N/μm
Radial Rigidity R <sub>r</sub> M	276 N/μm
Radial Rigidity <sub>r</sub> S	351 N/μm
Weight	0.03 kg
