SKU: 719USSC20 .A21.I/1.DB.M-UKF

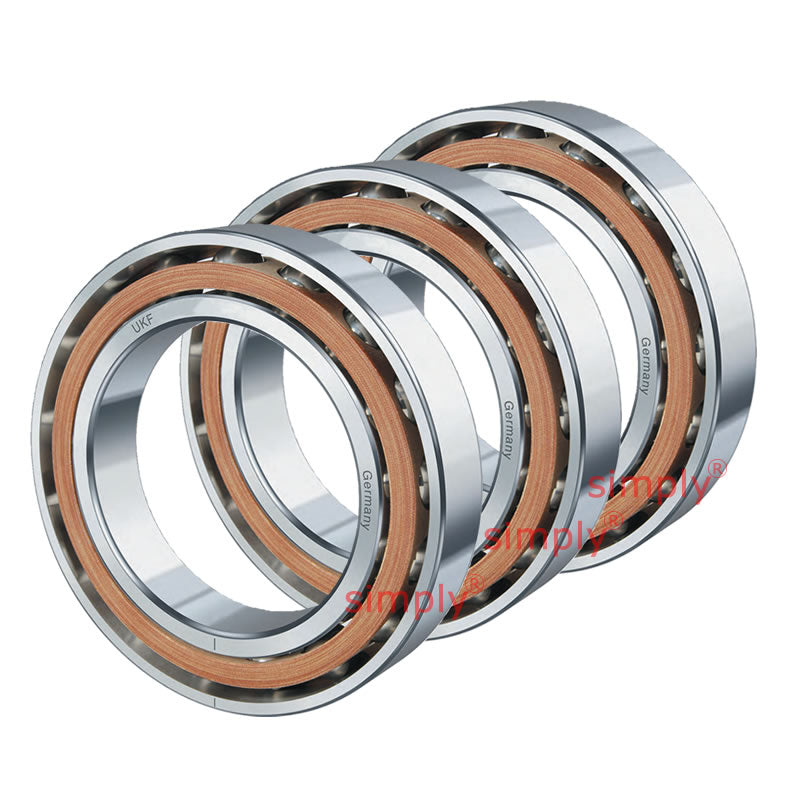

UKF 719USSC20A21I1DBM Super Precision Single Row Angular Contact Spindle Bearing 20x37x9mm
UKF 719USSC20A21I1DBM Super Precision Single Row Angular Contact Spindle Bearing 20x37x9mm
Regular price
CHF 254.33
ex VAT
Regular price
Sale price
CHF 254.33
ex VAT
Equivalent to: 719USSC20 .A21.I/1.DB.M
In stock
Price Break
10+
CHF 226.35
19+
CHF 213.64
29+
CHF 211.09
39+
CHF 208.55
49+
CHF 206.01
74+
CHF 203.46
99+
CHF 190.75
199+
CHF 188.20
249+
CHF 185.66
499+
CHF 183.12
999+
CHF 178.03
Couldn't load pickup availability
Description
Description
Equivalent: 719USSC20 .A21.I/1.DB.M
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 9mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
- Bearing Preload:
- Medium preload
Technical
Technical
| d | 20mm |
|---|---|
| D | 37mm |
| B | 9mm |
| Dynamic load Co | 2255 N |
| Static load C | 4900 N |
| Speed in Grease | 46200 rpm |
| Speed in Oil | 71400 rpm |
| r<sub>a</sub> | 0.15mm |
| d<sub>a</sub> | 23mm |
| D<sub>a</sub> | 34mm |
| Axial Preload F<sub>v</sub> L | 60 N |
| Axial Preload F<sub>v</sub> M | 180 N |
| Axial Preload F<sub>v</sub> S | 360 N |
| Axial Rigidity R<sub>a</sub> L | 48 N/μm |
| Axial Rigidity R<sub>a</sub> M | 69 N/μm |
| Axial Rigidity R<sub>a</sub> S | 18 N/μm |
| Radial Rigidity R<sub>r</sub> L | 196 N/μm |
| Radial Rigidity R <sub>r</sub> M | 276 N/μm |
| Radial Rigidity <sub>r</sub> S | 351 N/μm |
| Weight | 0.03 kg |
