SKU: 7202BECBP-SKF

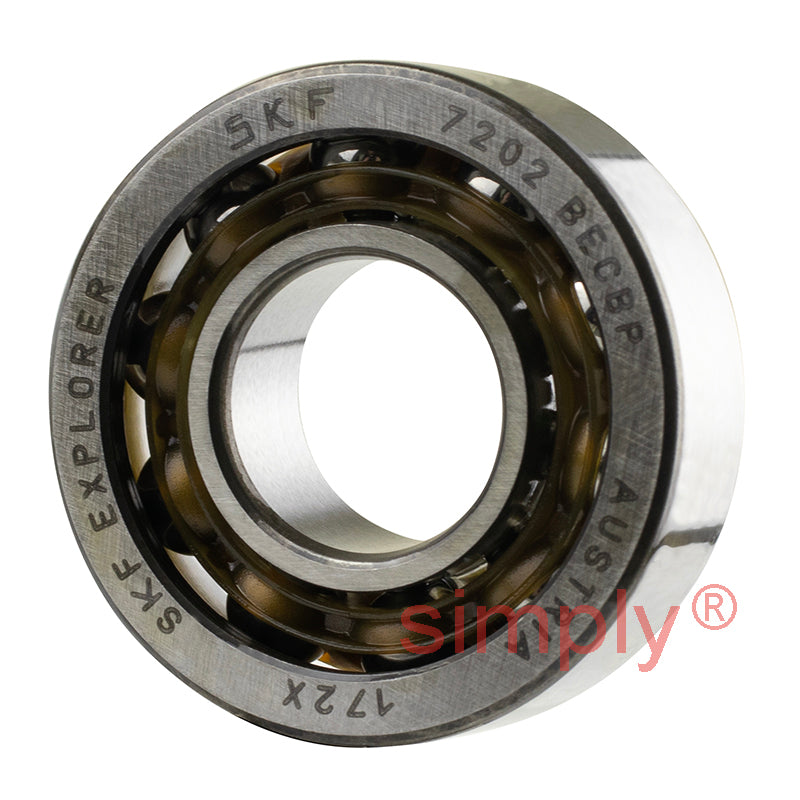

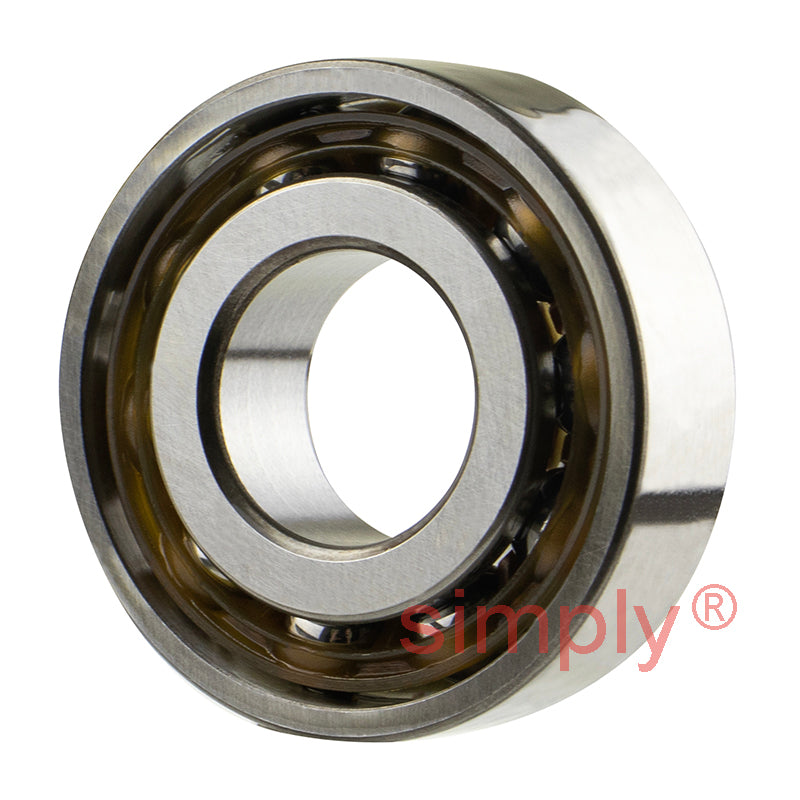

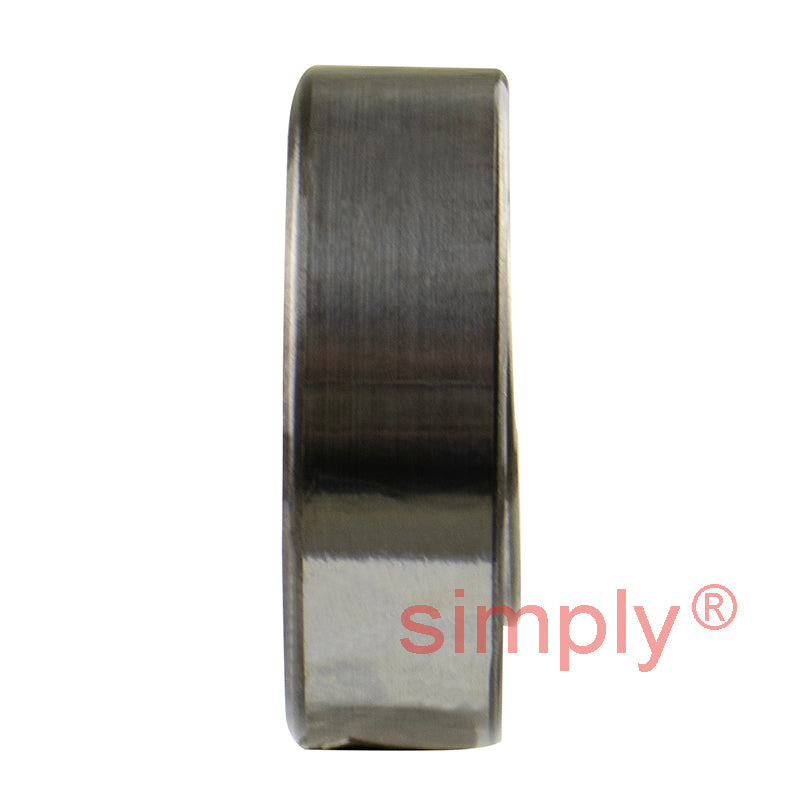

SKF 7202BECBP Single Row Angular Contact Ball Bearing 15x35x11mm
SKF 7202BECBP Single Row Angular Contact Ball Bearing 15x35x11mm
Regular price
CHF 40.00
ex VAT
Regular price
Sale price
CHF 40.00
ex VAT
Equivalent to: 7202BECBP
In stock
Price Break
4+
CHF 31.29
8+
CHF 29.53
12+
CHF 29.18
16+
CHF 28.83
25+
CHF 28.47
50+
CHF 28.12
99+
CHF 26.36
199+
CHF 26.01
249+
CHF 25.66
499+
CHF 25.31
999+
CHF 24.61
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7202BECBP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7202BECBP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| Dynamic load Cr | 9.5 kN |
| Static load Cor | 5.1 kN |
| Fatigue load limit Pu | 0.216 kN |
| Reference speed | 26000 rpm |
| Limit speed | 26000 rpm |
| Weight | 0.045 kg |
| d1 | 22.7mm |
| d2 | 19mm |
| D1 | 27.8mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.3mm |
| a | 16mm |
| da min | 19.2mm |
| Da max | 30.8mm |
| Db max | 32.6mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
