SKU: 7203BECBP-SKF

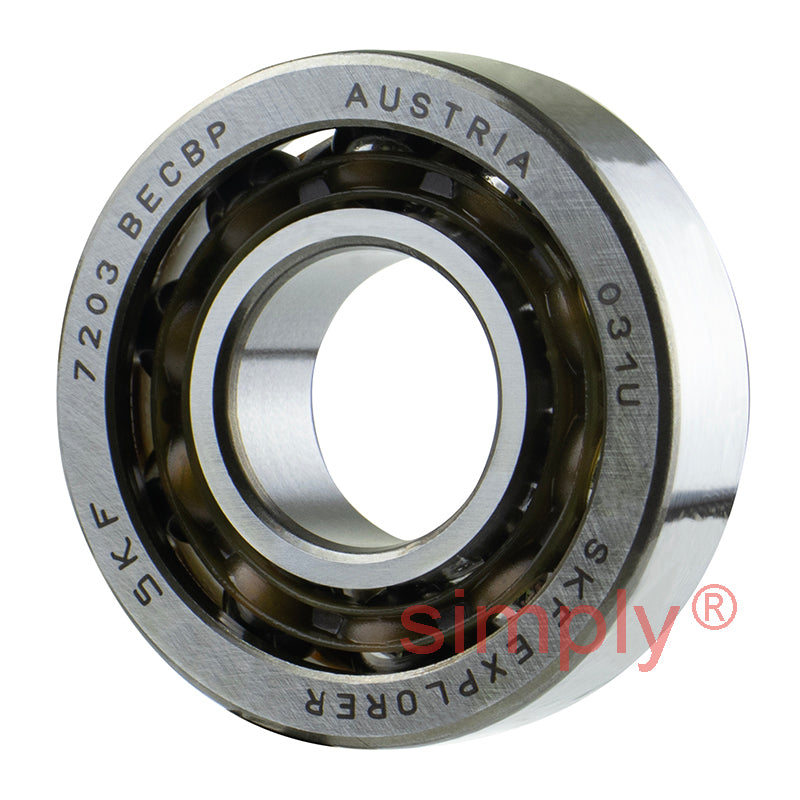

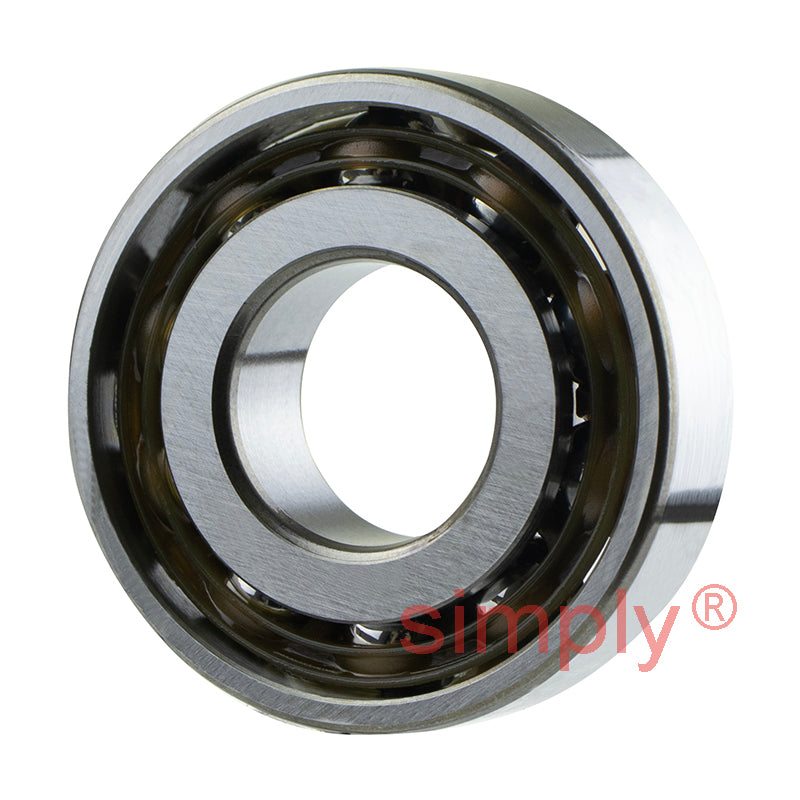

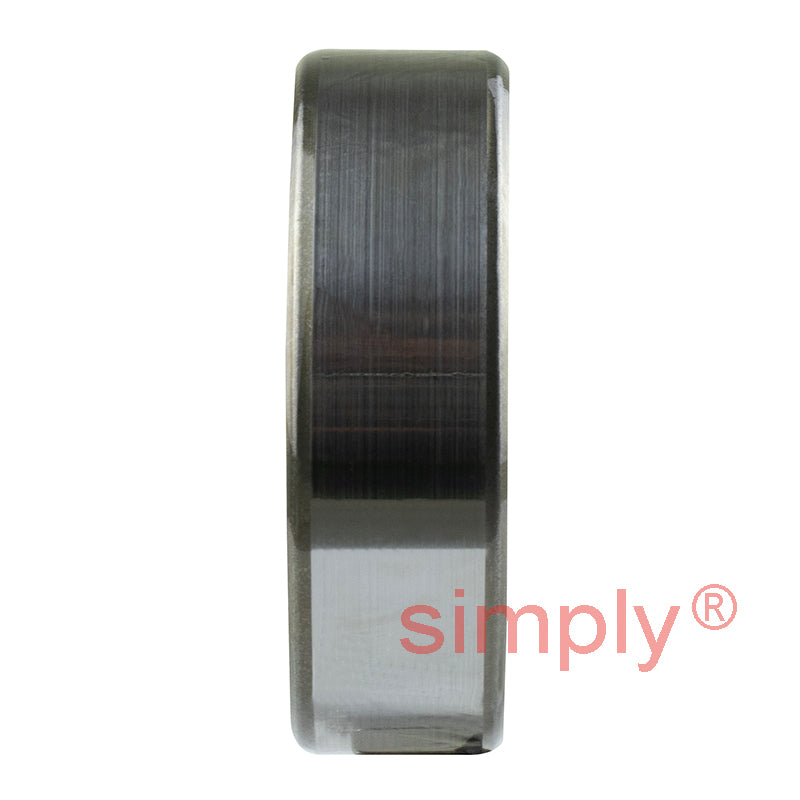

SKF 7203BECBP Single Row Angular Contact Ball Bearing 17x40x12mm
SKF 7203BECBP Single Row Angular Contact Ball Bearing 17x40x12mm
Regular price
CHF 43.64
ex VAT
Regular price
Sale price
CHF 43.64
ex VAT
Equivalent to: 7203BECBP
In stock
Price Break
10+
CHF 38.84
19+
CHF 36.66
29+
CHF 36.22
39+
CHF 35.78
49+
CHF 35.35
74+
CHF 34.91
99+
CHF 32.73
199+
CHF 32.29
249+
CHF 31.86
499+
CHF 31.42
999+
CHF 30.55
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7203BECBP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7203BECBP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| Dynamic load Cr | 11 kN |
| Static load Cor | 5.85 kN |
| Fatigue load limit Pu | 0.25 kN |
| Reference speed | 22000 rpm |
| Limit speed | 22000 rpm |
| Weight | 0.064 kg |
| d1 | 26.3mm |
| d2 | 21.7mm |
| D1 | 31.2mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.6mm |
| a | 18mm |
| da min | 21.2mm |
| Da max | 35.8mm |
| Db max | 35.8mm |
| ra max | 0.6mm |
| rb max | 0.6mm |
