SKU: 7203BEP-SKF

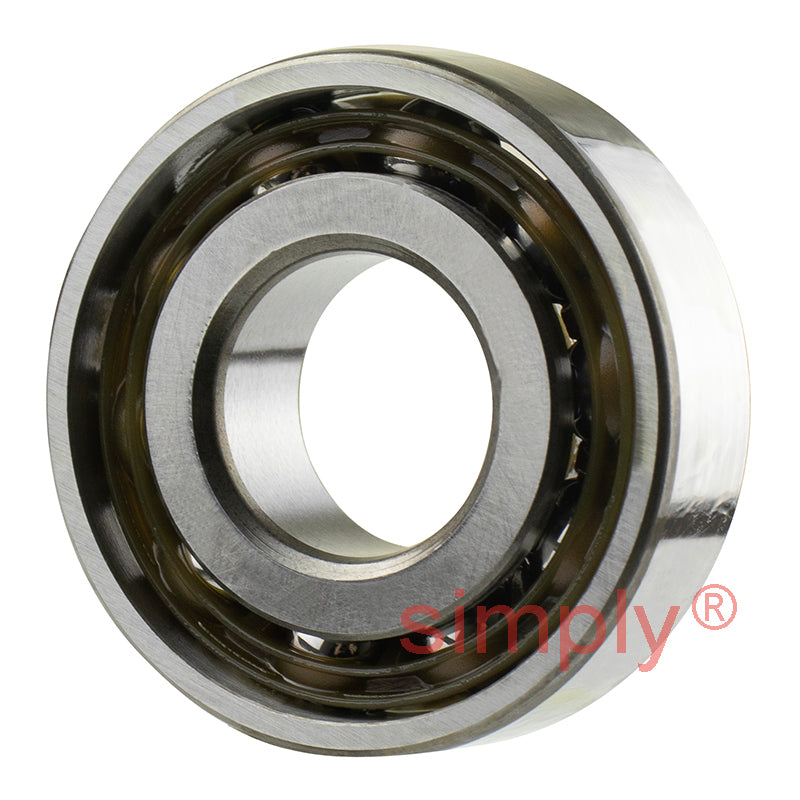

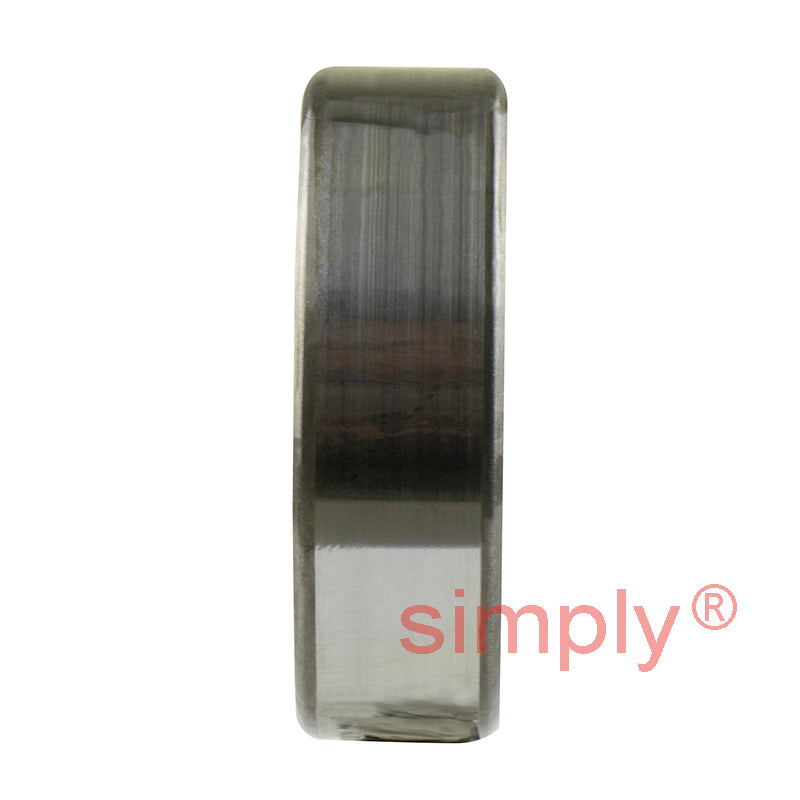

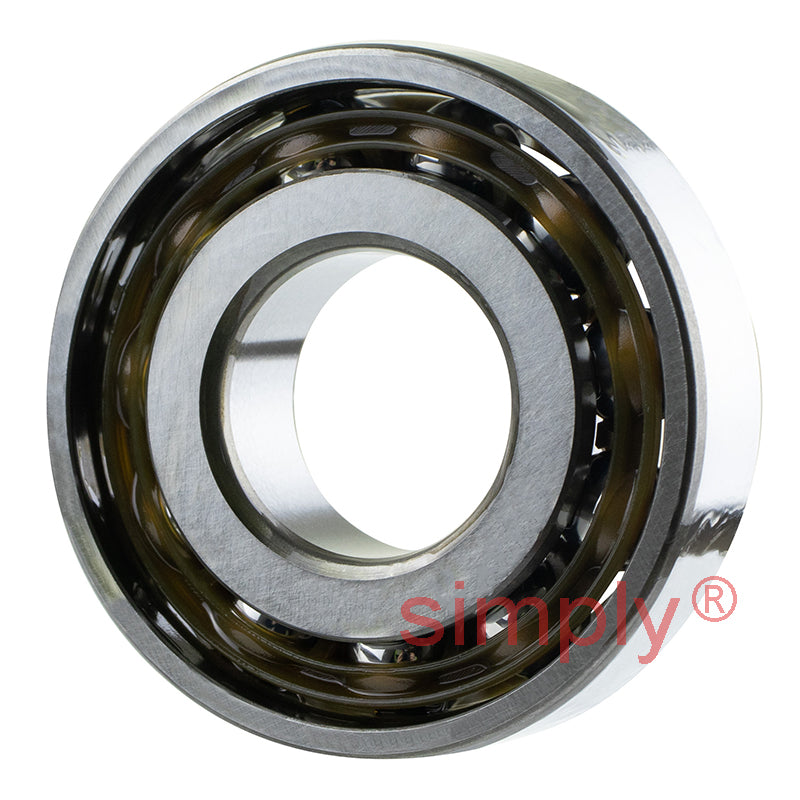

SKF 7203BEP Single Row Angular Contact Ball Bearing 17x40x12mm
SKF 7203BEP Single Row Angular Contact Ball Bearing 17x40x12mm
Regular price
CHF 23.00
ex VAT
Regular price
Sale price
CHF 23.00
ex VAT
Equivalent to: 7203BEP
In stock
Price Break
4+
CHF 18.15
8+
CHF 17.13
12+
CHF 16.93
16+
CHF 16.72
25+
CHF 16.52
50+
CHF 16.31
99+
CHF 15.29
199+
CHF 15.09
249+
CHF 14.89
499+
CHF 14.68
999+
CHF 14.27
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7203BEP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7203BEP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| Dynamic load Cr | 10.4 kN |
| Static load Cor | 5.5 kN |
| Fatigue load limit Pu | 0.236 kN |
| Reference speed | 20000 rpm |
| Limit speed | 20000 rpm |
| Weight | 0.064 kg |
| d1 | 26.3mm |
| d2 | 21.7mm |
| D1 | 31.2mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.6mm |
| a | 18mm |
| da min | 21.2mm |
| Da max | 35.8mm |
| Db max | 35.8mm |
| ra max | 0.6mm |
| rb max | 0.6mm |
