SKU: 7207CTRSULP4-RHP

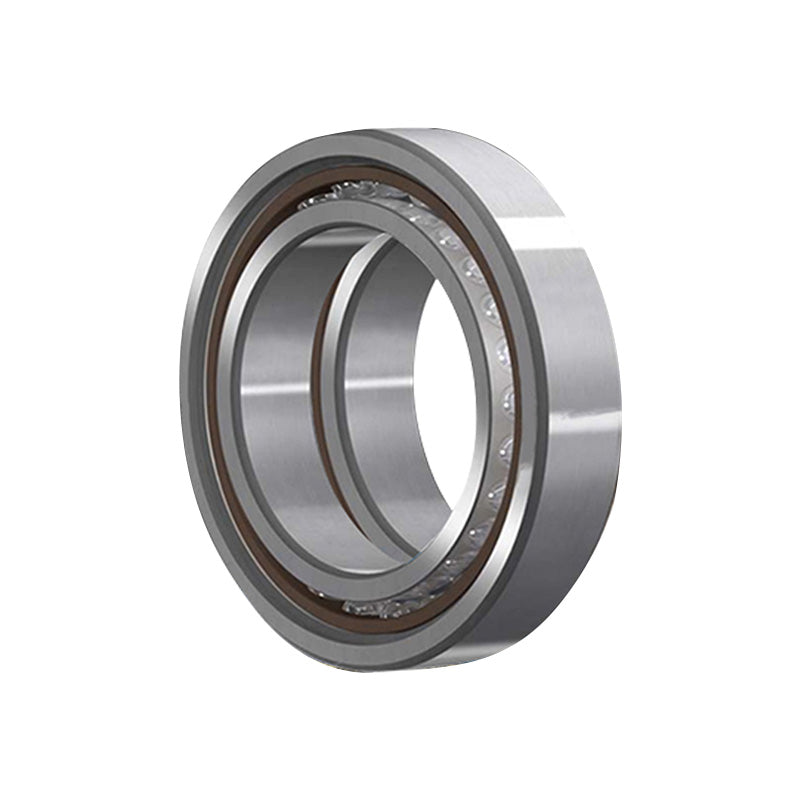

RHP 7207CTRSULP4 Super Precision Angular Contact Spindle Bearing 35x72x17mm

RHP 7207CTRSULP4 Super Precision Angular Contact Spindle Bearing 35x72x17mm
Regular price CHF 164.00 ex VAT
Regular price Sale price CHF 164.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 130.11
5+ CHF 122.80
10+ CHF 121.34
25+ CHF 119.88
49+ CHF 118.42
74+ CHF 116.95
99+ CHF 109.64
199+ CHF 108.18
249+ CHF 106.72
499+ CHF 105.26
999+ CHF 102.33
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 35mm
D 72mm
B 17mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 32Kn
C<sub>or</sub> 19.9kN
Axial load Kn 14.4 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 13.9
Effective diameter 15.7mm
Max speed in grease 21500 rpm
Max speed in oil 32800 rpm
--- Fitting dimensions
d<sub>a min</sub> 42mm
D<sub>a max</sub> 65mm
D<sub>b max</sub> 67mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 0.28kg
