SKU: 7211BECBM-SKF

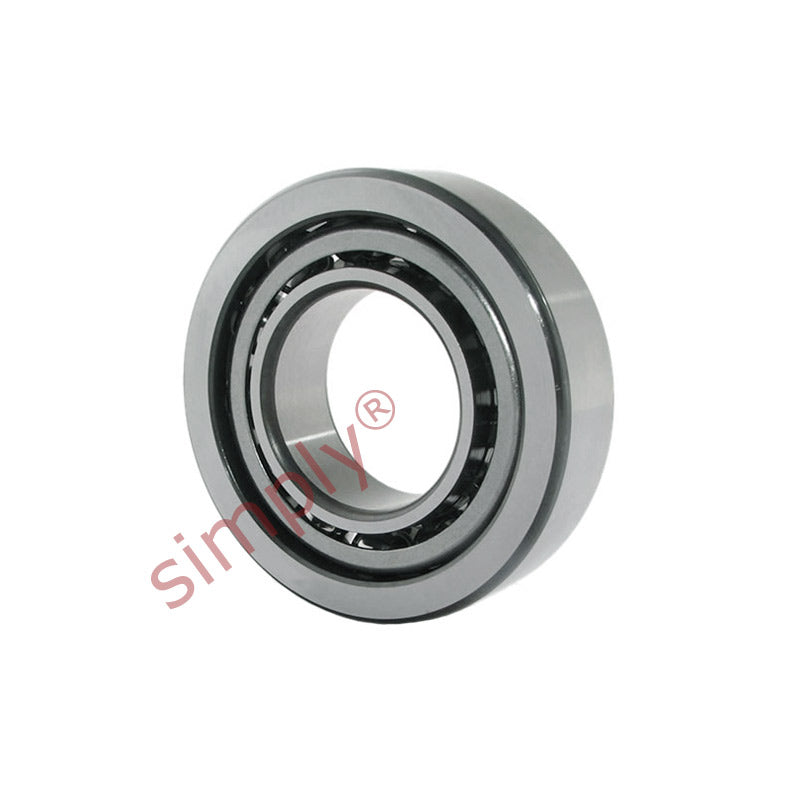

SKF 7211BECBM Single Row Angular Contact Ball Bearing 55x100x21mm
SKF 7211BECBM Single Row Angular Contact Ball Bearing 55x100x21mm
Regular price
CHF 155.92
ex VAT
Regular price
Sale price
CHF 155.92
ex VAT
Equivalent to: 7211BECBM
In stock
Price Break
10+
CHF 138.77
19+
CHF 130.97
29+
CHF 129.41
39+
CHF 127.85
49+
CHF 126.30
74+
CHF 124.74
99+
CHF 116.94
199+
CHF 115.38
249+
CHF 113.82
499+
CHF 112.26
999+
CHF 109.14
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7211BECBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7211BECBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 21mm |
| Dynamic load Cr | 49 kN |
| Static load Cor | 40 kN |
| Fatigue load limit Pu | 1.66 kN |
| Reference speed | 8000 rpm |
| Limit speed | 8000 rpm |
| Weight | 0.66 kg |
| d1 | 72.7mm |
| d2 | 63.6mm |
| D1 | 83.3mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1mm |
| a | 43mm |
| da min | 64mm |
| Da max | 91mm |
| Db max | 94mm |
| ra max | 1.5mm |
| rb max | 1mm |
