SKU: 7212BECBM-SKF

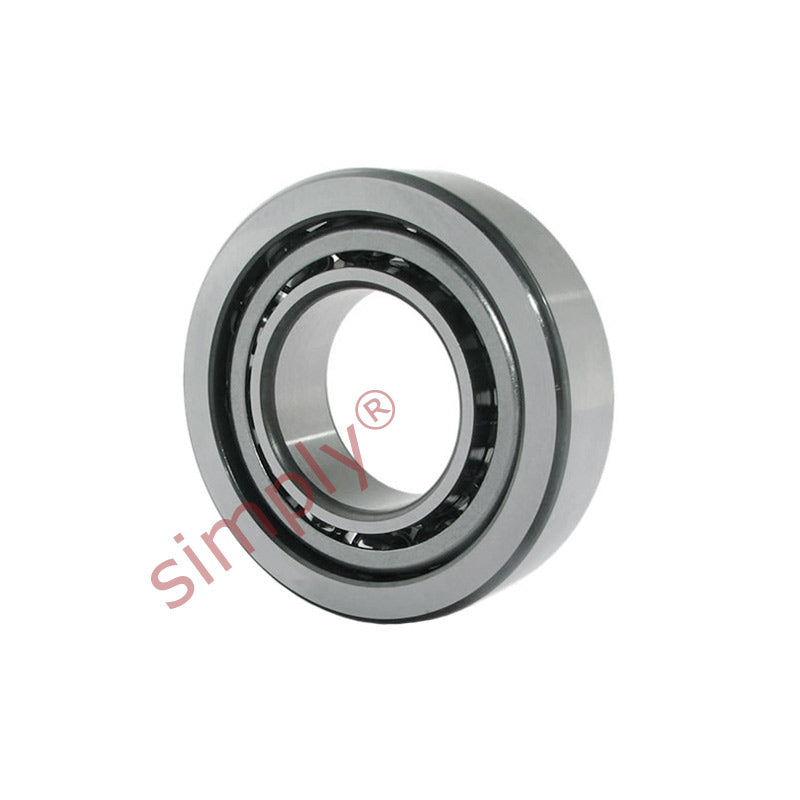

SKF 7212BECBM Single Row Angular Contact Ball Bearing 60x110x22mm
SKF 7212BECBM Single Row Angular Contact Ball Bearing 60x110x22mm
Regular price
CHF 182.42
ex VAT
Regular price
Sale price
CHF 182.42
ex VAT
Equivalent to: 7212BECBM
In stock
Price Break
10+
CHF 162.35
19+
CHF 153.23
29+
CHF 151.41
39+
CHF 149.58
49+
CHF 147.76
74+
CHF 145.94
99+
CHF 136.82
199+
CHF 134.99
249+
CHF 133.17
499+
CHF 131.34
999+
CHF 127.69
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7212BECBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7212BECBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 22mm |
| Dynamic load Cr | 61 kN |
| Static load Cor | 50 kN |
| Fatigue load limit Pu | 2.12 kN |
| Reference speed | 7500 rpm |
| Limit speed | 7500 rpm |
| Weight | 0.85 kg |
| d1 | 79.6mm |
| d2 | 69.3mm |
| D1 | 91.6mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1mm |
| a | 47mm |
| da min | 69mm |
| Da max | 101mm |
| Db max | 104mm |
| ra max | 1.5mm |
| rb max | 1mm |
