SKU: 7222BECBP-SKF

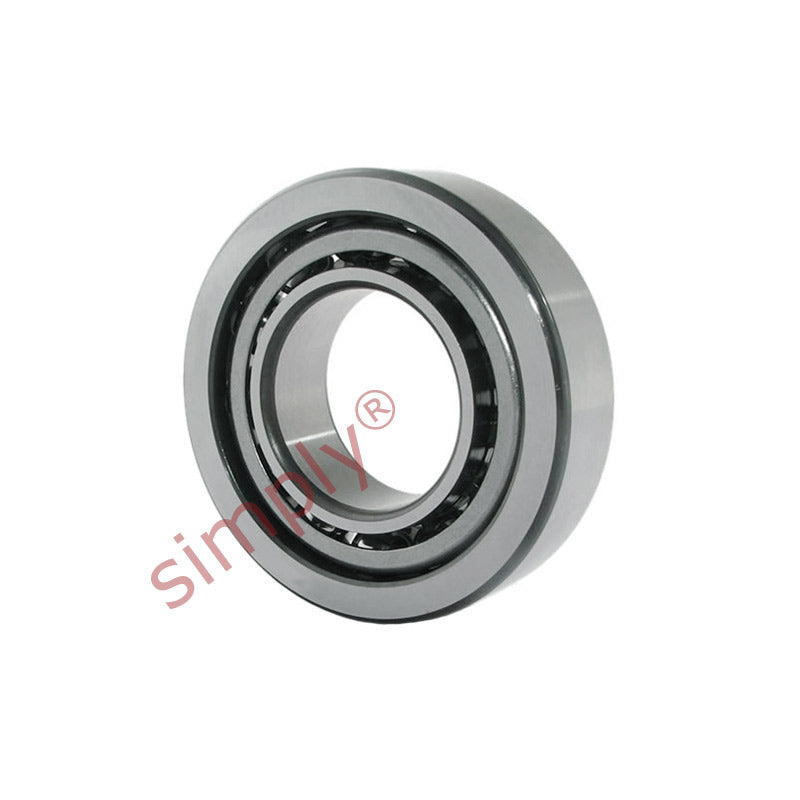

SKF 7222BECBP Single Row Angular Contact Ball Bearing 110x200x38mm
SKF 7222BECBP Single Row Angular Contact Ball Bearing 110x200x38mm
Regular price
CHF 478.00
ex VAT
Regular price
Sale price
CHF 478.00
ex VAT
Equivalent to: 7222BECBP
In stock
Price Break
4+
CHF 380.27
8+
CHF 358.91
12+
CHF 354.63
16+
CHF 350.36
25+
CHF 346.09
50+
CHF 341.82
99+
CHF 320.45
199+
CHF 316.18
249+
CHF 311.91
499+
CHF 307.63
999+
CHF 299.09
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7222BECBP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7222BECBP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 200mm
- Width:
- 38mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 110mm |
|---|---|
| D | 200mm |
| B | 38mm |
| Dynamic load Cr | 170 kN |
| Static load Cor | 166 kN |
| Fatigue load limit Pu | 4.7 kN |
| Reference speed | 4000 rpm |
| Limit speed | 4000 rpm |
| Weight | 4.6 kg |
| d1 | 144.9mm |
| d2 | 127.1mm |
| D1 | 167.4mm |
| r1r2 min | 2.1mm |
| r3r4 min | 1.1mm |
| a | 84mm |
| da min | 122mm |
| Da max | 188mm |
| Db max | 193mm |
| ra max | 2mm |
| rb max | 1mm |
