SKU: 7224BCBM-SKF

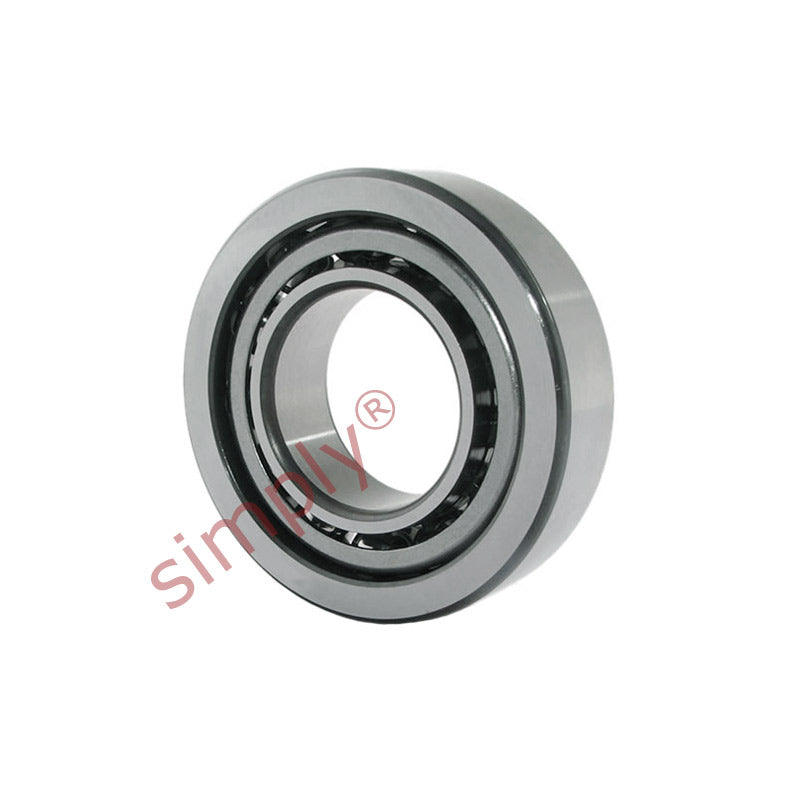

SKF 7224BCBM Single Row Angular Contact Ball Bearing 120x215x40mm
SKF 7224BCBM Single Row Angular Contact Ball Bearing 120x215x40mm
Regular price
CHF 706.82
ex VAT
Regular price
Sale price
CHF 706.82
ex VAT
Equivalent to: 7224BCBM
In stock
Price Break
10+
CHF 629.07
19+
CHF 593.73
29+
CHF 586.66
39+
CHF 579.59
49+
CHF 572.52
74+
CHF 565.46
99+
CHF 530.12
199+
CHF 523.05
249+
CHF 515.98
499+
CHF 508.91
999+
CHF 494.77
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7224BCBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7224BCBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 120mm |
|---|---|
| D | 215mm |
| B | 40mm |
| Dynamic load Cr | 165 kN |
| Static load Cor | 163 kN |
| Fatigue load limit Pu | 5.3 kN |
| Reference speed | 3400 rpm |
| Limit speed | 3600 rpm |
| Weight | 5.89 kg |
| d1 | 157mm |
| d2 | 138.6mm |
| D1 | 179.4mm |
| r1r2 min | 2.1mm |
| r3r4 min | 1.1mm |
| a | 90mm |
| da min | 132mm |
| Da max | 203mm |
| Db max | 208mm |
| ra max | 2mm |
| rb max | 1mm |
