SKU: 7309BECBP-SKF

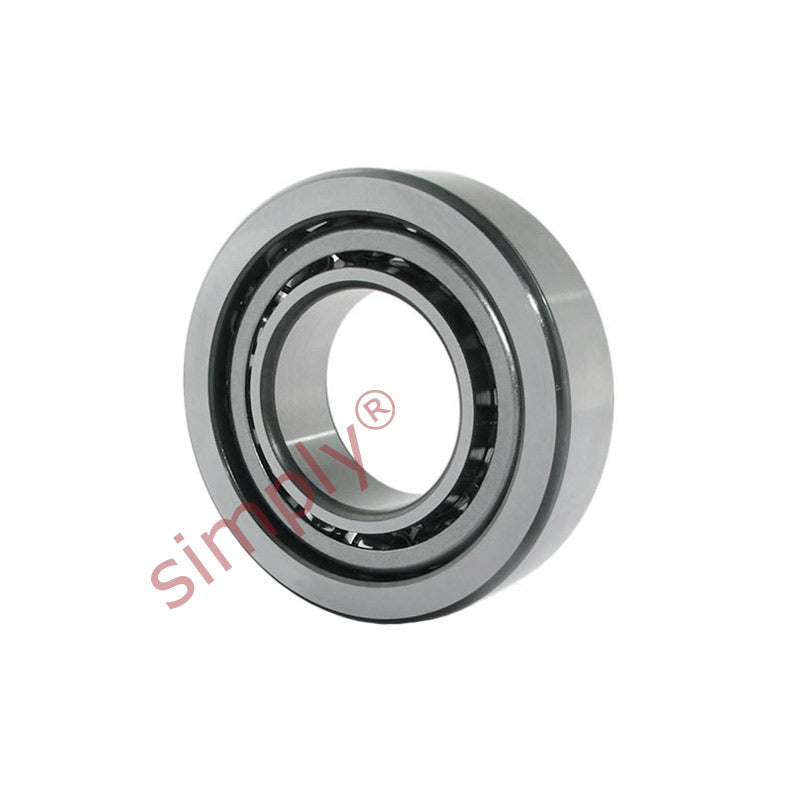

SKF 7309BECBP Single Row Angular Contact Ball Bearing 45x100x25mm
SKF 7309BECBP Single Row Angular Contact Ball Bearing 45x100x25mm
Regular price
CHF 96.13
ex VAT
Regular price
Sale price
CHF 96.13
ex VAT
Equivalent to: 7309BECBP
In stock
Price Break
10+
CHF 85.56
19+
CHF 80.75
29+
CHF 79.79
39+
CHF 78.83
49+
CHF 77.87
74+
CHF 76.90
99+
CHF 72.10
199+
CHF 71.14
249+
CHF 70.17
499+
CHF 69.21
999+
CHF 67.29
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7309BECBP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7309BECBP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load Cr | 61 kN |
| Static load Cor | 40.5 kN |
| Fatigue load limit Pu | 1.73 kN |
| Reference speed | 9000 rpm |
| Limit speed | 9000 rpm |
| Weight | 0.82 kg |
| d1 | 66.5mm |
| d2 | 55.3mm |
| D1 | 79.8mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1mm |
| a | 43mm |
| da min | 54mm |
| Da max | 91mm |
| Db max | 94.4mm |
| ra max | 1.5mm |
| rb max | 1mm |
