SKU: 7309BECBY-SKF

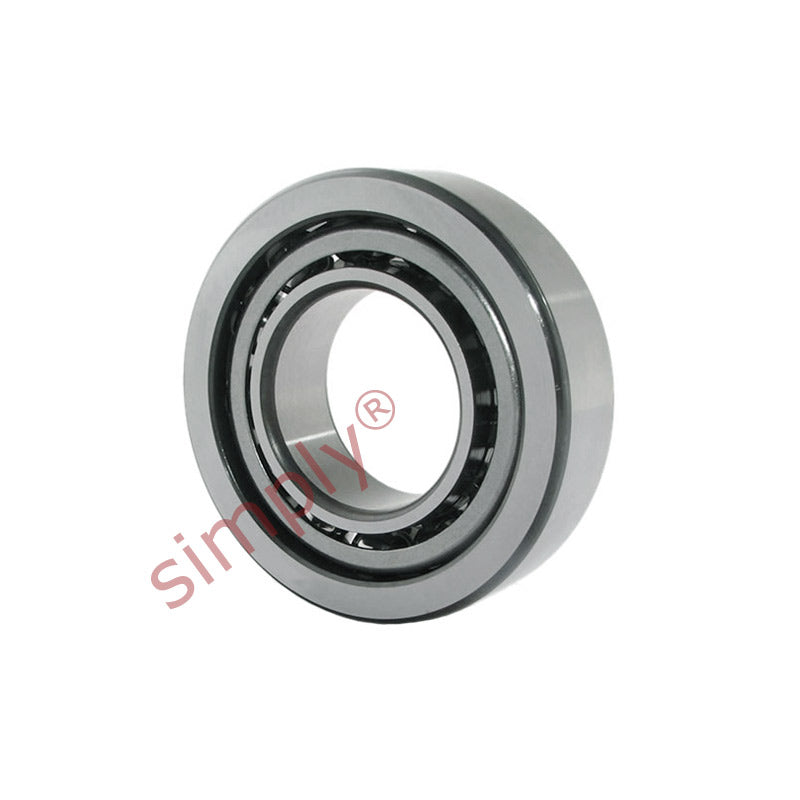

SKF 7309BECBY Single Row Angular Contact Ball Bearing 45x100x25mm
SKF 7309BECBY Single Row Angular Contact Ball Bearing 45x100x25mm
Regular price
CHF 165.00
ex VAT
Regular price
Sale price
CHF 165.00
ex VAT
Equivalent to: 7309BECBY
In stock
Price Break
4+
CHF 131.29
8+
CHF 123.92
12+
CHF 122.44
16+
CHF 120.96
25+
CHF 119.49
50+
CHF 118.01
99+
CHF 110.64
199+
CHF 109.16
249+
CHF 107.69
499+
CHF 106.21
999+
CHF 103.26
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7309BECBY
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7309BECBY
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load Cr | 60.5 kN |
| Static load Cor | 41.5 kN |
| Fatigue load limit Pu | 1.73 kN |
| Reference speed | 8000 rpm |
| Limit speed | 8000 rpm |
| Weight | 0.86 kg |
| d1 | 66.5mm |
| d2 | 55.3mm |
| D1 | 79.8mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1mm |
| a | 43mm |
| da min | 54mm |
| Da max | 91mm |
| Db max | 94.4mm |
| ra max | 1.5mm |
| rb max | 1mm |
