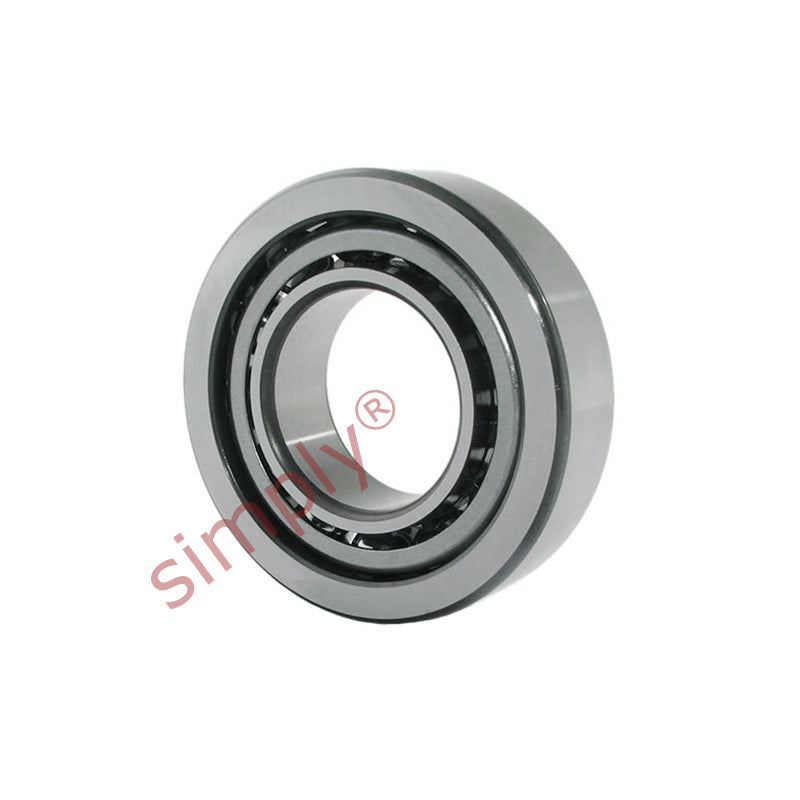

SKF 7309BEP Single Row Angular Contact Ball Bearing 45x100x25mm
SKF 7309BEP Single Row Angular Contact Ball Bearing 45x100x25mm
Regular price
CHF 72.00
ex VAT
Regular price
Sale price
CHF 72.00
ex VAT
Equivalent to: 7309BEP
In stock
Price Break
4+
CHF 56.61
8+
CHF 53.43
12+
CHF 52.79
16+
CHF 52.16
25+
CHF 51.52
50+
CHF 50.88
99+
CHF 47.70
199+
CHF 47.07
249+
CHF 46.43
499+
CHF 45.80
999+
CHF 44.52
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7309BEP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7309BEP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load Cr | 55.9 kN |
| Static load Cor | 37.5 kN |
| Fatigue load limit Pu | 1.73 kN |
| Reference speed | 8000 rpm |
| Limit speed | 8000 rpm |
| Weight | 0.82 kg |
| d1 | 66.5mm |
| d2 | 55.3mm |
| D1 | 79.8mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1mm |
| a | 43mm |
| da min | 54mm |
| Da max | 91mm |
| Db max | 94.4mm |
| ra max | 1.5mm |
| rb max | 1mm |
