SKU: 7310BEP-SKF

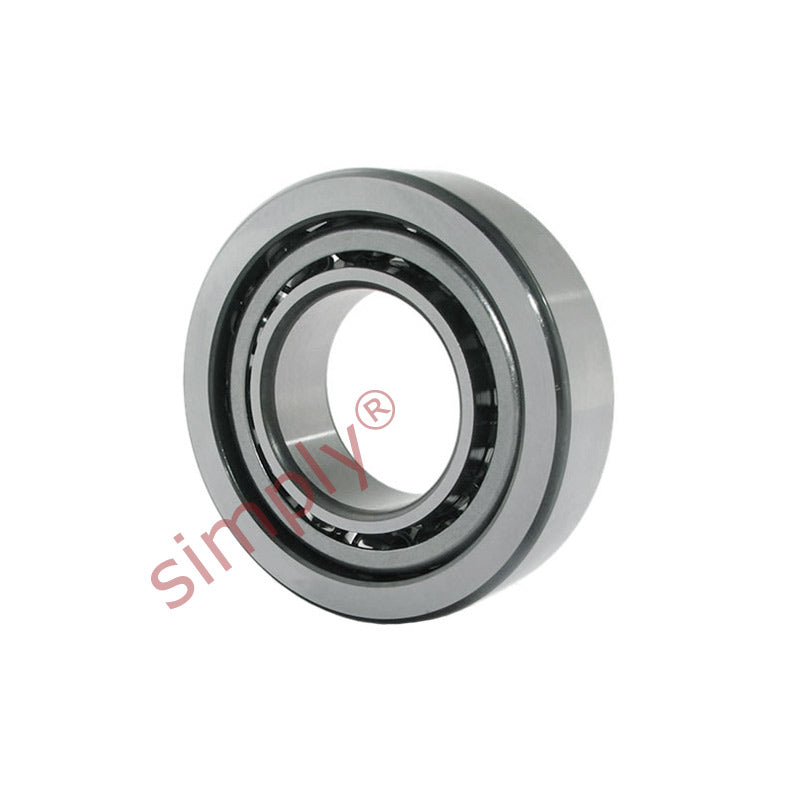

SKF 7310BEP Single Row Angular Contact Ball Bearing 50x110x27mm
SKF 7310BEP Single Row Angular Contact Ball Bearing 50x110x27mm
Regular price
CHF 89.25
ex VAT
Regular price
Sale price
CHF 89.25
ex VAT
Equivalent to: 7310BEP
In stock
Price Break
10+
CHF 79.43
19+
CHF 74.97
29+
CHF 74.08
39+
CHF 73.19
49+
CHF 72.29
74+
CHF 71.40
99+
CHF 66.94
199+
CHF 66.05
249+
CHF 65.15
499+
CHF 64.26
999+
CHF 62.48
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7310BEP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7310BEP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 27mm |
| Dynamic load Cr | 68.9 kN |
| Static load Cor | 47.5 kN |
| Fatigue load limit Pu | 2 kN |
| Reference speed | 7500 rpm |
| Limit speed | 7500 rpm |
| Weight | 1.04 kg |
| d1 | 73.8mm |
| d2 | 61.1mm |
| D1 | 88.8mm |
| r1r2 min | 2mm |
| r3r4 min | 1mm |
| a | 47mm |
| da min | 61mm |
| Da max | 99mm |
| Db max | 104mm |
| ra max | 2mm |
| rb max | 1mm |
