SKU: 7315BECBJ-SKF

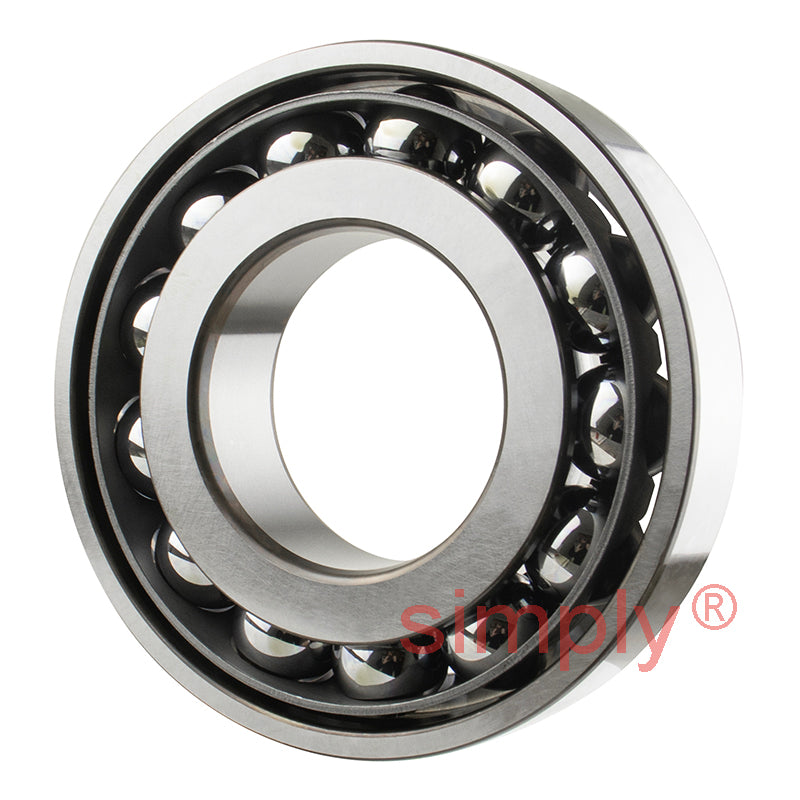

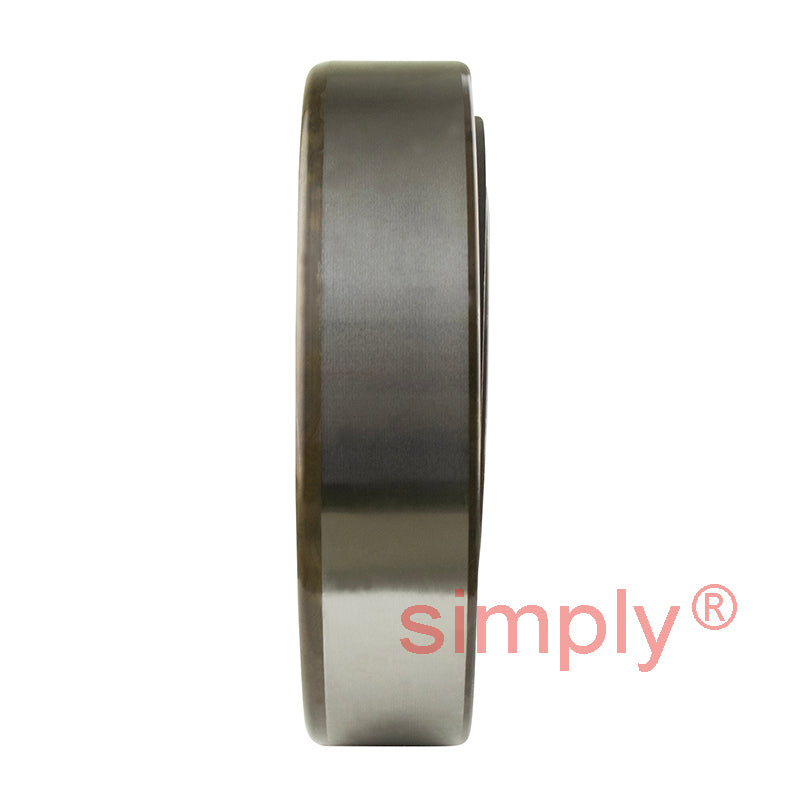

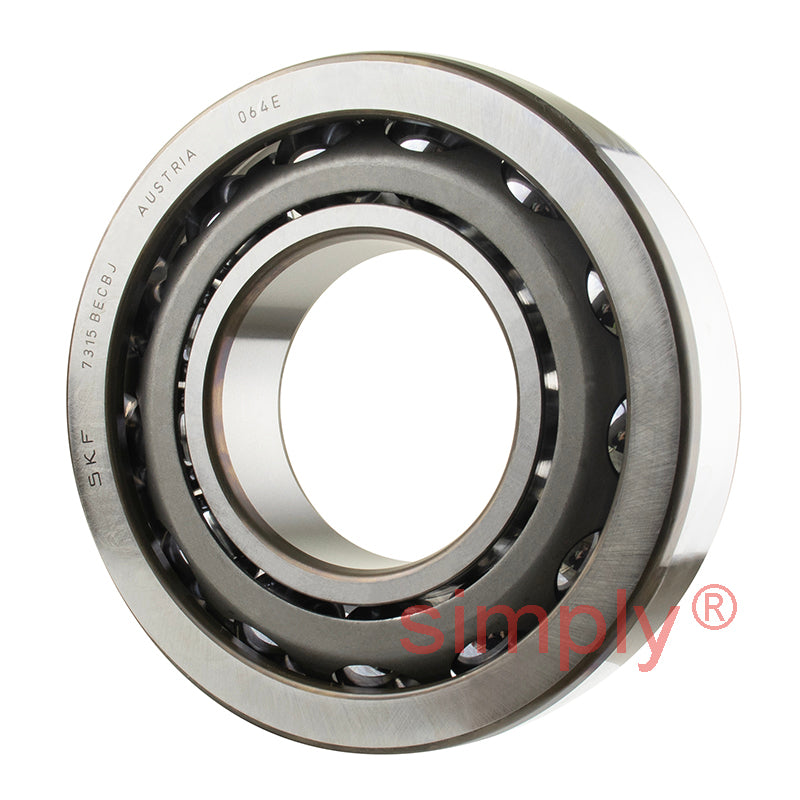

SKF 7315BECBJ Single Row Angular Contact Ball Bearing 75x160x37mm
SKF 7315BECBJ Single Row Angular Contact Ball Bearing 75x160x37mm
Regular price
CHF 386.00
ex VAT
Regular price
Sale price
CHF 386.00
ex VAT
Equivalent to: 7315BECBJ
In stock
Price Break
4+
CHF 307.08
8+
CHF 289.83
12+
CHF 286.38
16+
CHF 282.93
25+
CHF 279.48
50+
CHF 276.03
99+
CHF 258.77
199+
CHF 255.32
249+
CHF 251.87
499+
CHF 248.42
999+
CHF 241.52
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7315BECBJ
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7315BECBJ
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load Cr | 132 kN |
| Static load Cor | 104 kN |
| Fatigue load limit Pu | 4.15 kN |
| Reference speed | 5300 rpm |
| Limit speed | 5300 rpm |
| Weight | 3.2 kg |
| d1 | 108.25mm |
| d2 | 91.13mm |
| D1 | 128.9mm |
| r1r2 min | 2.1mm |
| r3r4 min | 1.1mm |
| a | 68mm |
| da min | 87mm |
| Da max | 148mm |
| Db max | 153mm |
| ra max | 2mm |
| rb max | 1mm |
