SKU: 7316BECBM-SKF

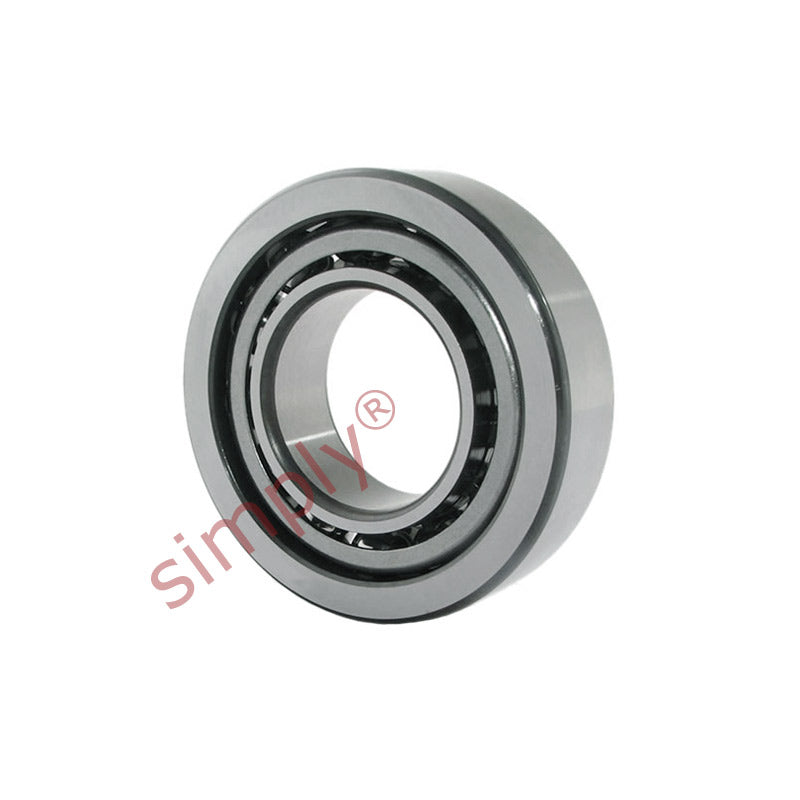

SKF 7316BECBM Single Row Angular Contact Ball Bearing 80x170x39mm
SKF 7316BECBM Single Row Angular Contact Ball Bearing 80x170x39mm
Regular price
CHF 476.75
ex VAT
Regular price
Sale price
CHF 476.75
ex VAT
Equivalent to: 7316BECBM
In stock
Price Break
10+
CHF 424.31
19+
CHF 400.47
29+
CHF 395.70
39+
CHF 390.94
49+
CHF 386.17
74+
CHF 381.40
99+
CHF 357.56
199+
CHF 352.80
249+
CHF 348.03
499+
CHF 343.26
999+
CHF 333.73
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7316BECBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7316BECBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| Dynamic load Cr | 143 kN |
| Static load Cor | 118 kN |
| Fatigue load limit Pu | 4.5 kN |
| Reference speed | 5000 rpm |
| Limit speed | 5000 rpm |
| Weight | 4.03 kg |
| d1 | 115.2mm |
| d2 | 97.1mm |
| D1 | 136.8mm |
| r1r2 min | 2.1mm |
| r3r4 min | 1.1mm |
| a | 72mm |
| da min | 92mm |
| Da max | 158mm |
| Db max | 163mm |
| ra max | 2mm |
| rb max | 1mm |
