SKU: 7316BECBY-SKF

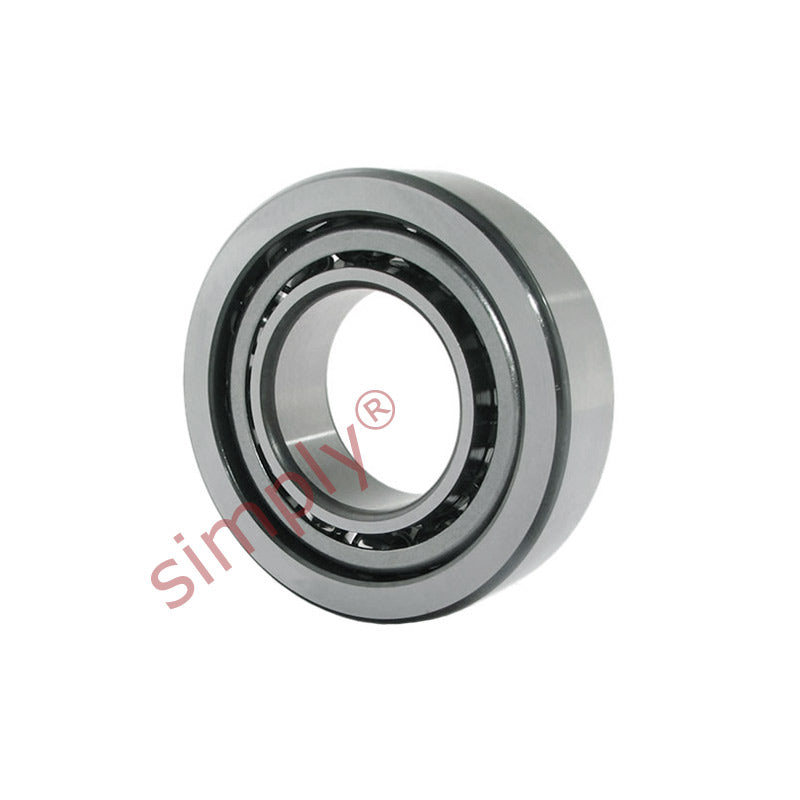

SKF 7316BECBY Single Row Angular Contact Ball Bearing 80x170x39mm
SKF 7316BECBY Single Row Angular Contact Ball Bearing 80x170x39mm
Regular price
CHF 372.00
ex VAT
Regular price
Sale price
CHF 372.00
ex VAT
Equivalent to: 7316BECBY
In stock
Price Break
4+
CHF 296.22
8+
CHF 279.58
12+
CHF 276.25
16+
CHF 272.93
25+
CHF 269.60
50+
CHF 266.27
99+
CHF 249.63
199+
CHF 246.30
249+
CHF 242.97
499+
CHF 239.64
999+
CHF 232.99
Share this product
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7316BECBY
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7316BECBY
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| Dynamic load Cr | 143 kN |
| Static load Cor | 118 kN |
| Fatigue load limit Pu | 4.5 kN |
| Reference speed | 4500 rpm |
| Limit speed | 4500 rpm |
| Weight | 3.7 kg |
| d1 | 115.2mm |
| d2 | 97.1mm |
| D1 | 136.8mm |
| r1r2 min | 2.1mm |
| r3r4 min | 1.1mm |
| a | 72mm |
| da min | 92mm |
| Da max | 158mm |
| Db max | 163mm |
| ra max | 2mm |
| rb max | 1mm |
