SKU: 7316BEP-SKF

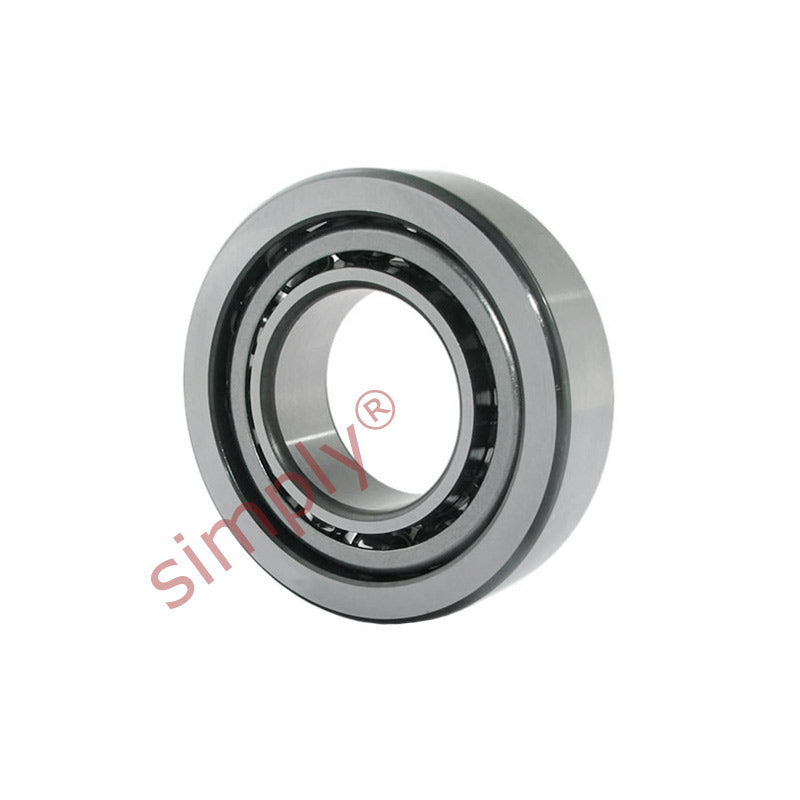

SKF 7316BEP Single Row Angular Contact Ball Bearing 80x170x39mm
SKF 7316BEP Single Row Angular Contact Ball Bearing 80x170x39mm
Regular price
CHF 294.11
ex VAT
Regular price
Sale price
CHF 294.11
ex VAT
Equivalent to: 7316BEP
In stock
Price Break
10+
CHF 261.76
19+
CHF 247.05
29+
CHF 244.11
39+
CHF 241.17
49+
CHF 238.23
74+
CHF 235.29
99+
CHF 220.58
199+
CHF 217.64
249+
CHF 214.70
499+
CHF 211.76
999+
CHF 205.88
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7316BEP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7316BEP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| Dynamic load Cr | 135 kN |
| Static load Cor | 110 kN |
| Fatigue load limit Pu | 4.15 kN |
| Reference speed | 4500 rpm |
| Limit speed | 4500 rpm |
| Weight | 3.64 kg |
| d1 | 115.2mm |
| d2 | 97.1mm |
| D1 | 136.8mm |
| r1r2 min | 2.1mm |
| r3r4 min | 1.1mm |
| a | 72mm |
| da min | 92mm |
| Da max | 158mm |
| Db max | 163mm |
| ra max | 2mm |
| rb max | 1mm |
