SKU: 73562/73876CD/X2S73562-TIM

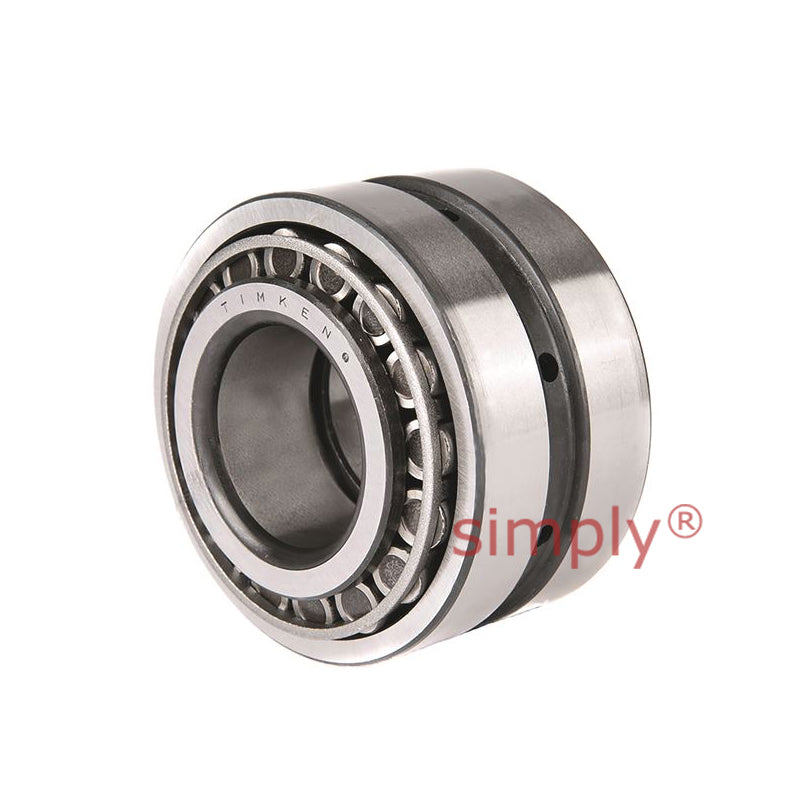

Timken 73562/73876CD/X2S73562 TDO Double Outer Race Taper Roller Bearing 5.625x8.75x2.9803x2.125 inch
Timken 73562/73876CD/X2S73562 TDO Double Outer Race Taper Roller Bearing 5.625x8.75x2.9803x2.125 inch
Regular price
CHF 15,909.88
ex VAT
Regular price
Sale price
CHF 15,909.88
ex VAT
In stock
Price Break
2+
CHF 15,908.29
5+
CHF 15,830.33
10+
CHF 15,750.78
15+
CHF 15,591.68
20+
CHF 15,432.58
30+
CHF 15,273.48
50+
CHF 15,114.39
Couldn't load pickup availability
Description
Description

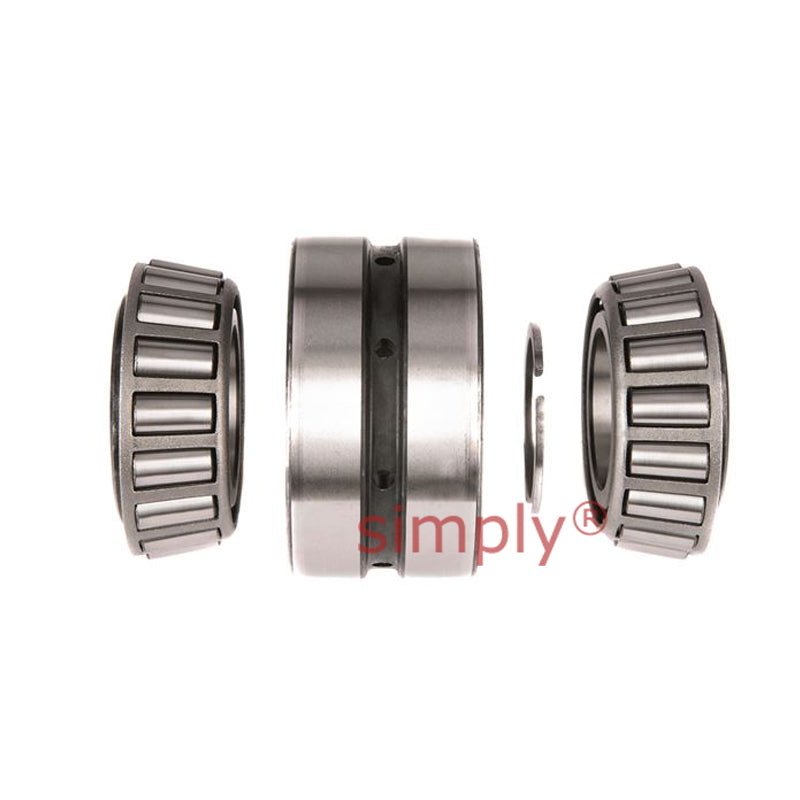

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 142.88mm = 5.625 inch
- Outside Diameter:
- 222.25mm = 8.75 inch
- Width:
- 75.70mm = 2.9803 inch
Technical
Technical
| d | 142.875mm = 5.625 inch |
|---|---|
| D | 222.25mm = 8.75 inch |
| T | 75.7mm = 2.9803 inch |
| C | 53.975mm = 2.125 inch |
| Dynamic (1) C1 | 398000N |
| Factors (5) e | 0.44 |
| Factors (5) Y1 | 1.54 |
| Factors (5) Y2 | 2.3 |
| Dynamic (2) C90 | 59300N |
| Dynamic (2) Ca90 | 44400N |
| Dynamic (2) C90(2) | 103000N |
| Factors (5) K | 1.34 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 159mm = 6.26 inch |
| Housing max shaft fillet radius r(3) | 2.3mm = 0.09 inch |
| Housing backing shoulder diameter Da | 207mm = 8.15 inch |
| Pin Ka | 10.9mm = 0.43 inch |
| Pin Kb | 6.4mm = 0.25 inch |
| G1 | 244 |
| G2 | 82 |
| Cg | 0.1122 |
