SKU: 7904CSN24TRDULP3-RHP

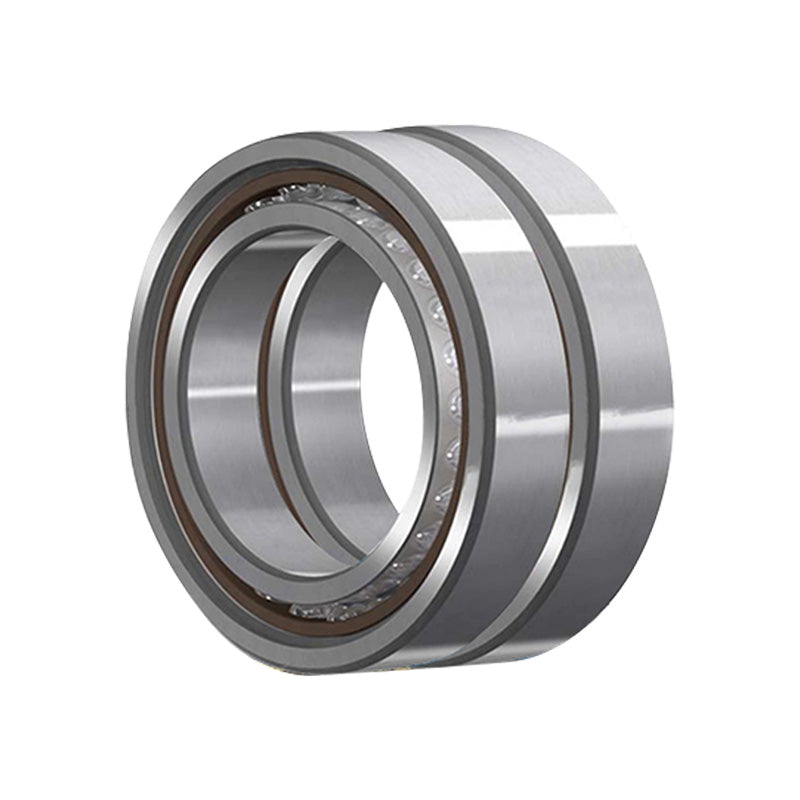

RHP 7904CSN24TRDULP3 Super Precision Angular Contact Spindle Bearing 20x37x9mm (Set of 2)

RHP 7904CSN24TRDULP3 Super Precision Angular Contact Spindle Bearing 20x37x9mm (Set of 2)
Regular price CHF 529.81 ex VAT
Regular price Sale price CHF 529.81 ex VAT
Sale Sold out

In stock

Price Break
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 20mm
D 37mm
B 9mm
r<sub>min</sub> 0.3mm
r1<sub>min</sub> 0.15mm
--- Loads angles and speeds
C<sub>r</sub> -7.3Kn
C<sub>or</sub> -4.25kN
Axial load Kn 3.78 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 14.9
Effective diameter 8.3mm
Max speed in grease 52700 rpm
Max speed in oil 80000 rpm
--- Fitting dimensions
d<sub>a min</sub> 22.5mm
D<sub>a max</sub> 34.5mm
D<sub>b max</sub> 35.8mm
r<sub>a max</sub> 0.3mm
r<sub>b max</sub> 0.15mm
Weight 0.066kg
