SKU: 7907A5TRV1VSULP3-NSK

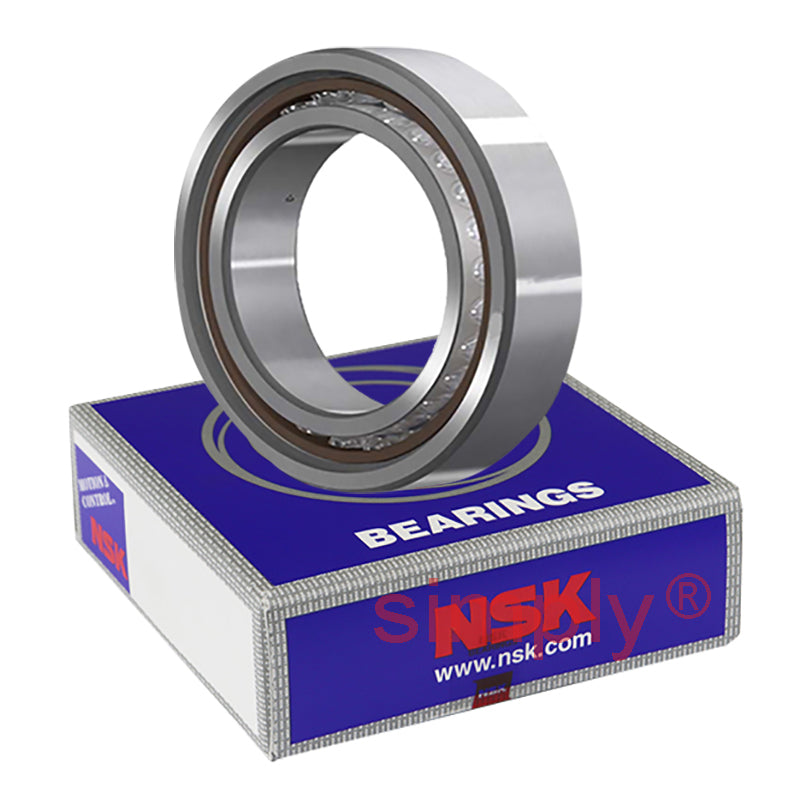

NSK 7907A5TRV1VSULP3 Super Precision Sealed Angular Contact Spindle Bearing 35x55x10mm

NSK 7907A5TRV1VSULP3 Super Precision Sealed Angular Contact Spindle Bearing 35x55x10mm
Regular price CHF 178.00 ex VAT
Regular price Sale price CHF 178.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 141.55
5+ CHF 133.60
10+ CHF 132.01
25+ CHF 130.42
49+ CHF 128.83
74+ CHF 127.23
99+ CHF 119.28
199+ CHF 117.69
249+ CHF 116.10
499+ CHF 114.51
999+ CHF 111.33
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 35mm
D 55mm
B 10mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 12Kn
C<sub>or</sub> 8.7kN
Axial load Kn 7.2 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 15.5mm
Max speed in grease 22300 rpm
Max speed in oil 33400 rpm
--- Fitting dimensions
d<sub>a min</sub> 40mm
D<sub>a max</sub> 50mm
D<sub>b max</sub> 52.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.075kg
