SKU: 7E-HMK4020-NTN

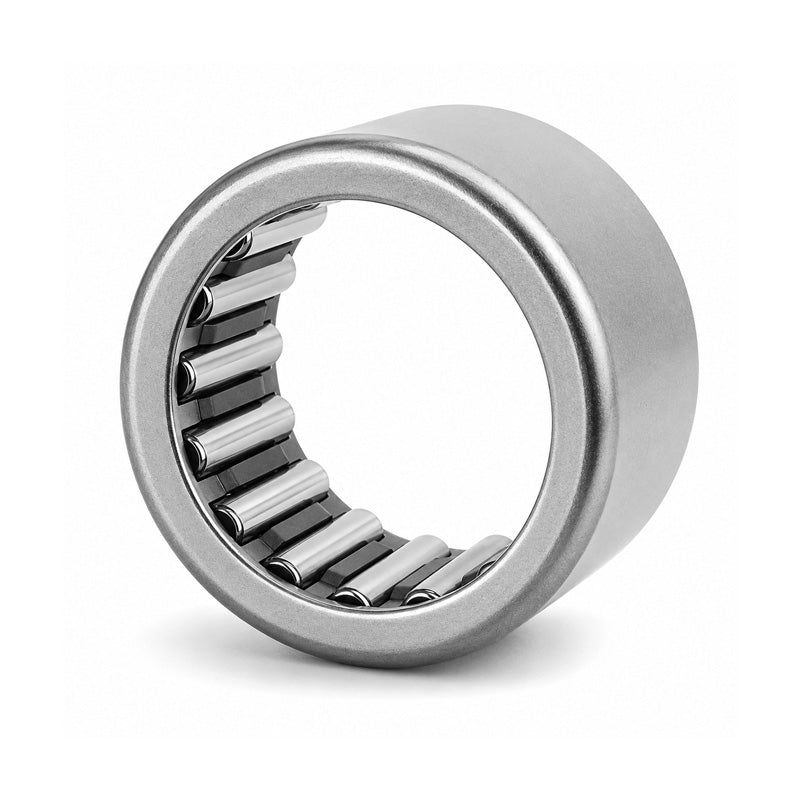

NTN 7E-HMK4020 Drawn Cup Needle Roller Bearing with Open End and Hardened Inner Ring 40x50x20mm - Allow 2-3 Days

NTN 7E-HMK4020 Drawn Cup Needle Roller Bearing with Open End and Hardened Inner Ring 40x50x20mm - Allow 2-3 Days
Regular price CHF 12.00 ex VAT
Regular price Sale price CHF 12.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 9.85
4+ CHF 9.45
9+ CHF 9.25
19+ CHF 8.96
49+ CHF 8.76
99+ CHF 8.26
499+ CHF 6.97
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 40mm
D - Outside diameter 50mm
C - Width of bearing, drawn cup or outer ring 20mm
Lubrication hole on outer ring? No
Inner ring reference IR35X40X20.5
Cr - Dynamic load rating 32.5 kN
C0r - Static load rating 50 kN
N - Grease lubrication limit speed 4000 tr/min
N - Oil lubrication limit speed 6000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
