SKU: 80-2-5MTR-MB

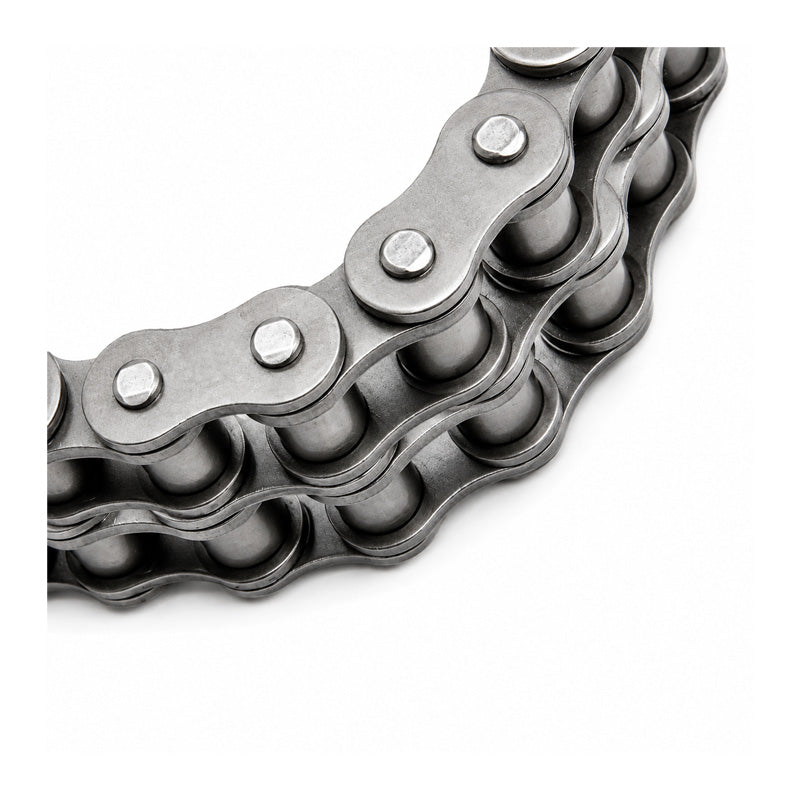

Branded ANSI/ASA80-2 Duplex Roller Chain 1 inch Pitch 5 Metres
Branded ANSI/ASA80-2 Duplex Roller Chain 1 inch Pitch 5 Metres
Regular price
CHF 154.00
ex VAT
Regular price
Sale price
CHF 154.00
ex VAT
In stock
Price Break
2+
CHF 122.68
5+
CHF 115.78
10+
CHF 114.41
29+
CHF 113.03
49+
CHF 111.65
75+
CHF 110.27
100+
CHF 103.38
200+
CHF 102.00
250+
CHF 100.62
500+
CHF 99.24
1000+
CHF 96.49
Description
Description
Major Branded Roller Chain: Manufactured to BS228, ISO 606, DIN8187, DIN8188 standards with hardened pins which prevent wear and stretch and also make it easy to dismantle. Roller chains are designed for demanding industrial and agricultural drives. Consistent quality, high-quality product.
Comprehensive range of simplex, duplex and triplex roller chains in British standard and American standard. Heavy-duty American standard roller chains are also available for extra tough conditions.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical

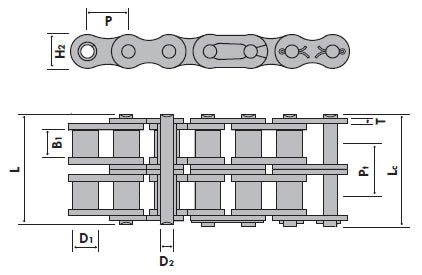

| Pitch (P) | 25.4mm = 1 inch |
|---|---|
| Roller Diameter (D1 max) | 15.88mm |
| Width between inner plates (B1 min) | 15.75mm |
| Pin dia meter (D2 max) | 7.92mm |
| Pin length (L max) | 62.7mm |
| Pin length (Lc max) | 64.3mm |
| Inner plate depth (H2 max) | 24mm |
| Plate thickness (T max) | 3.25mm |
| Ultimate tensile strength (Q min) kN/LB | 113.40/25773 |
| Average tensile strength (Q0) kN | 141.8 |
| Transverse pitch (Pt) mm | 29.29 |
| Weight per meter (q) kg/m | 5.15 |
