SKU: 80-3-SYN-NO26-RENOLD
Renold Synergy 80-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Renold Synergy 80-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
CHF 103.00
ex VAT
Regular price
Sale price
CHF 103.00
ex VAT
In stock
Price Break
2+
CHF 81.84
5+
CHF 77.24
10+
CHF 76.32
29+
CHF 75.40
49+
CHF 74.48
75+
CHF 73.56
100+
CHF 68.97
200+
CHF 68.05
250+
CHF 67.13
500+
CHF 66.21
1000+
CHF 64.37
Description
Description

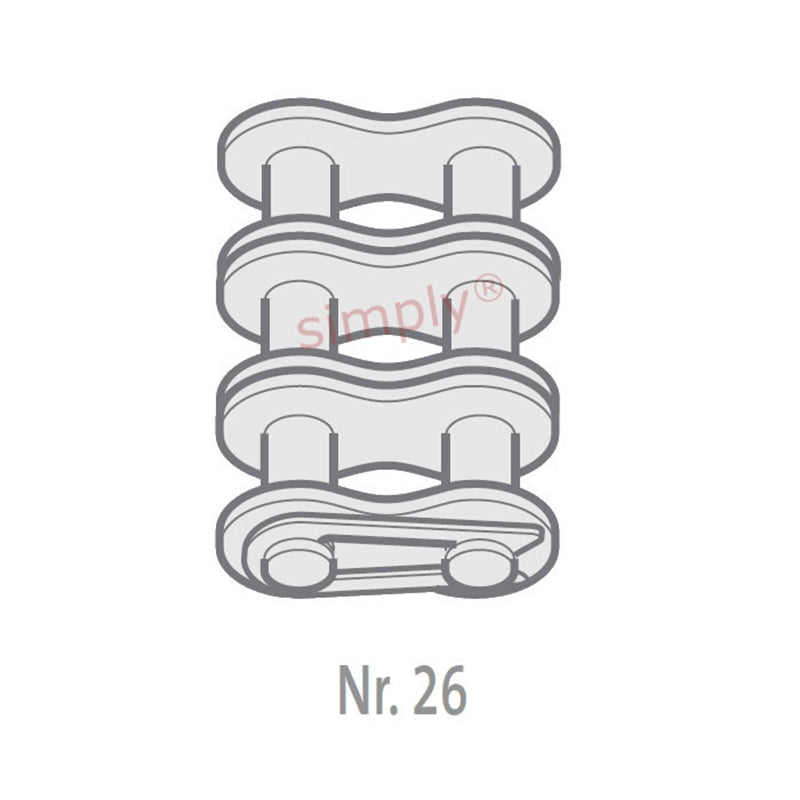

| Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.13mm |
| Plate Width Inner max (E) | 3.25mm |
| Plate Width Outer max (F) | 3.25mm |
| Pin Diameter max (G) | 7.94mm |
| Pin Length max (H2) | 91.2mm |
| Connecting Link Extension max (J) | 3mm |
| Transverse Pitch nom (K) | 29.29mm |
| ISO606 Tensile Strength min | 166800 N |
| Weight | 0.01kg/m |
