SKU: 81109.TN.MB

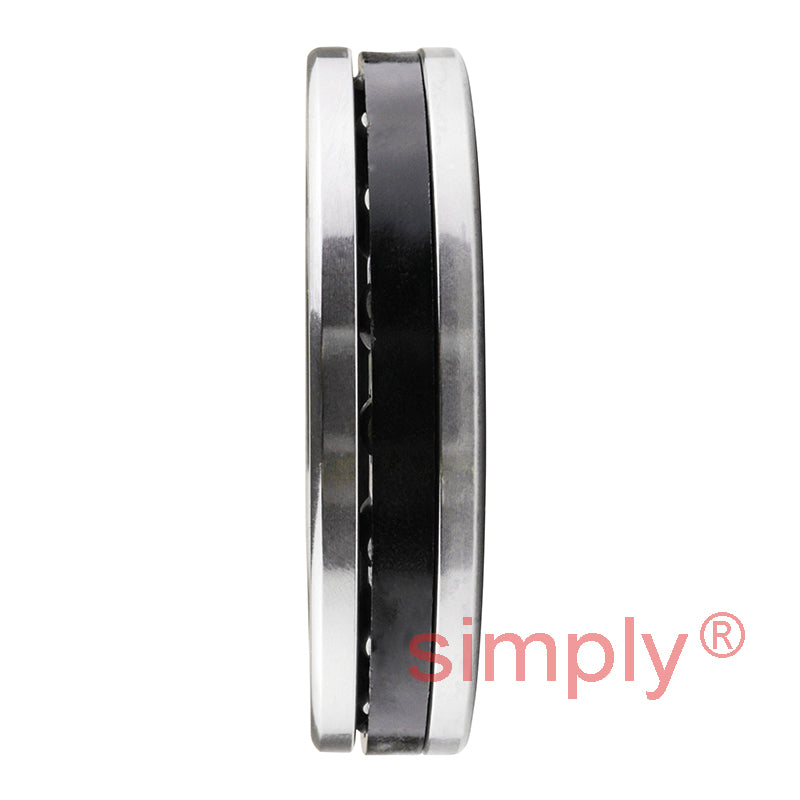

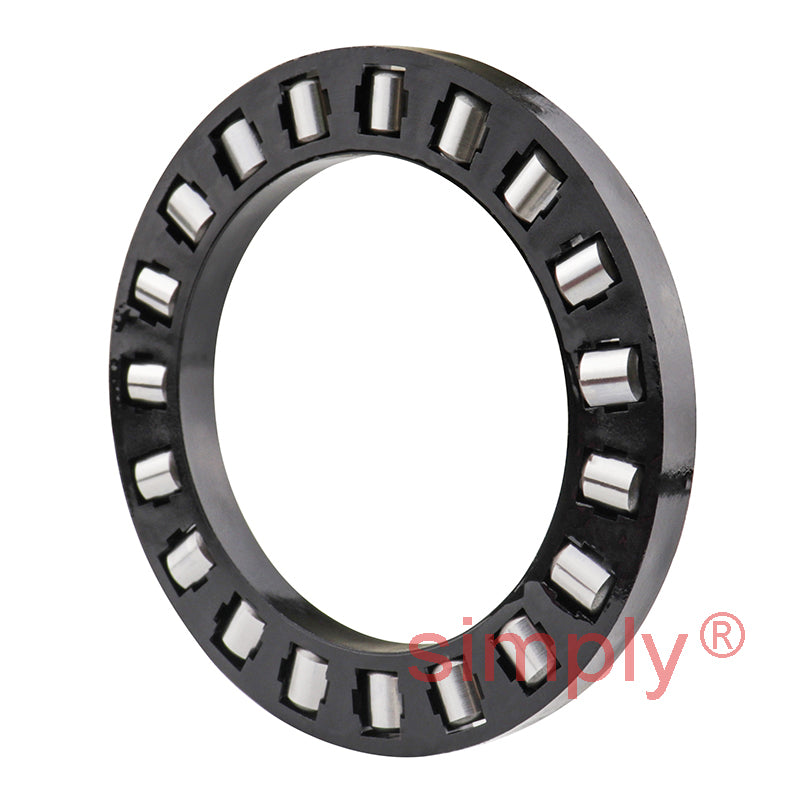

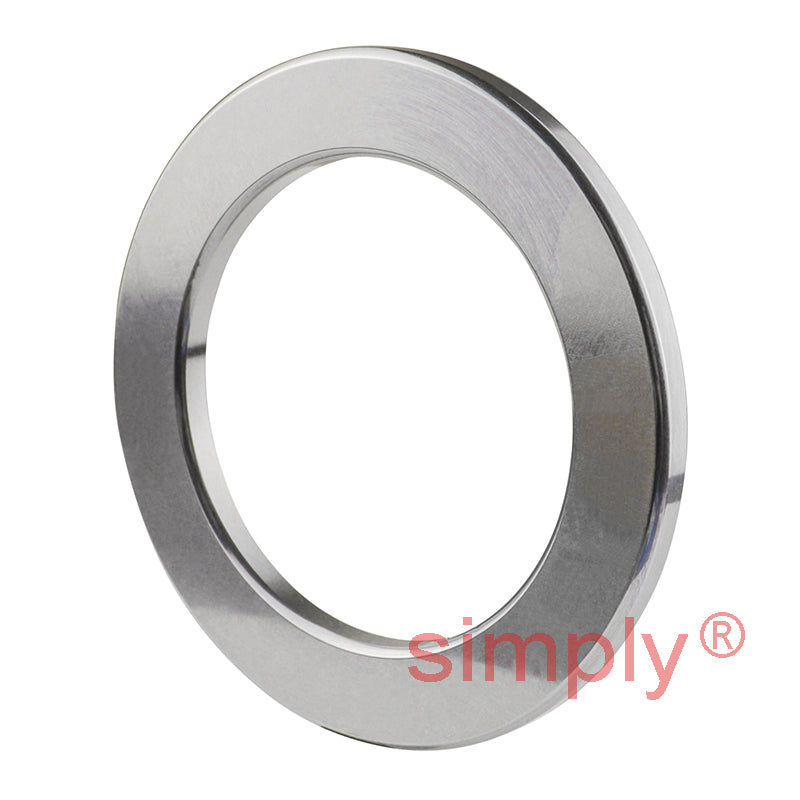

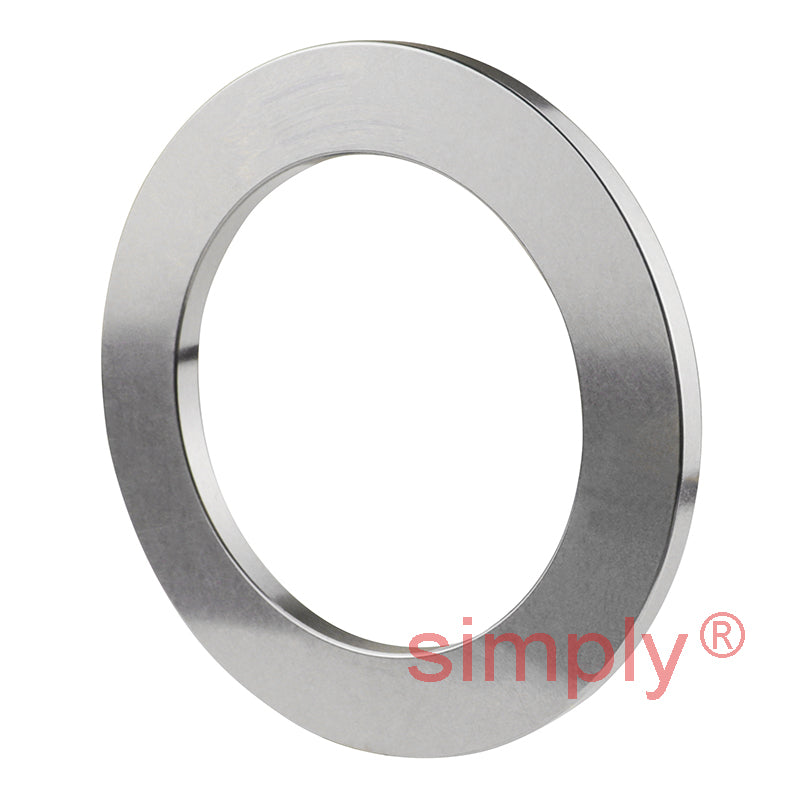

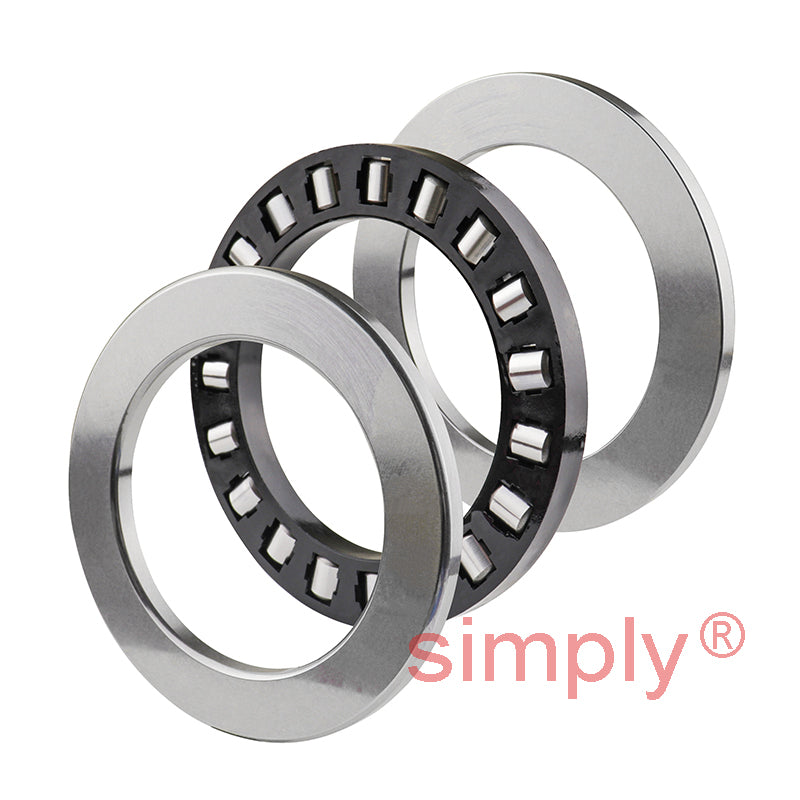

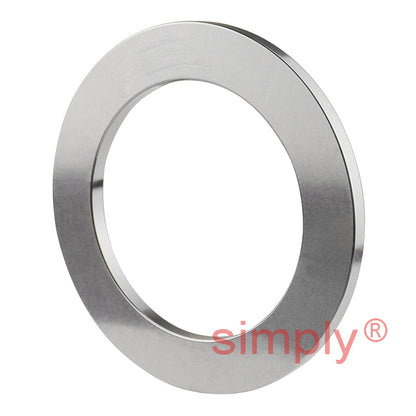

Major Brand 81109TN Cylindrical Roller Thrust Bearing with Nylon Cage 45x65x14mm
Major Brand 81109TN Cylindrical Roller Thrust Bearing with Nylon Cage 45x65x14mm
Regular price
CHF 45.00
ex VAT
Regular price
Sale price
CHF 45.00
ex VAT
Equivalent to: AZ456514
In stock
Price Break
10+
CHF 35.08
19+
CHF 33.11
29+
CHF 32.71
39+
CHF 32.32
49+
CHF 31.92
74+
CHF 31.53
99+
CHF 29.56
199+
CHF 29.16
249+
CHF 28.77
499+
CHF 28.38
999+
CHF 27.59
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Equivalent: AZ456514
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 65mm
- Width:
- 14mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 65mm |
| H | 14mm |
| Dynamic load C | 45 kN |
| Static load Co | 153 kN |
| Fatigue load limit Pu | 15.3 kN |
| Min load factor A | 0.0014 |
| Reference speed | 2200 rpm |
| Limiting speed | 4500 rpm |
| Cage reference | K81109TN |
| Weight | 0.13 kg |
