SKU: 81210.TN.MB

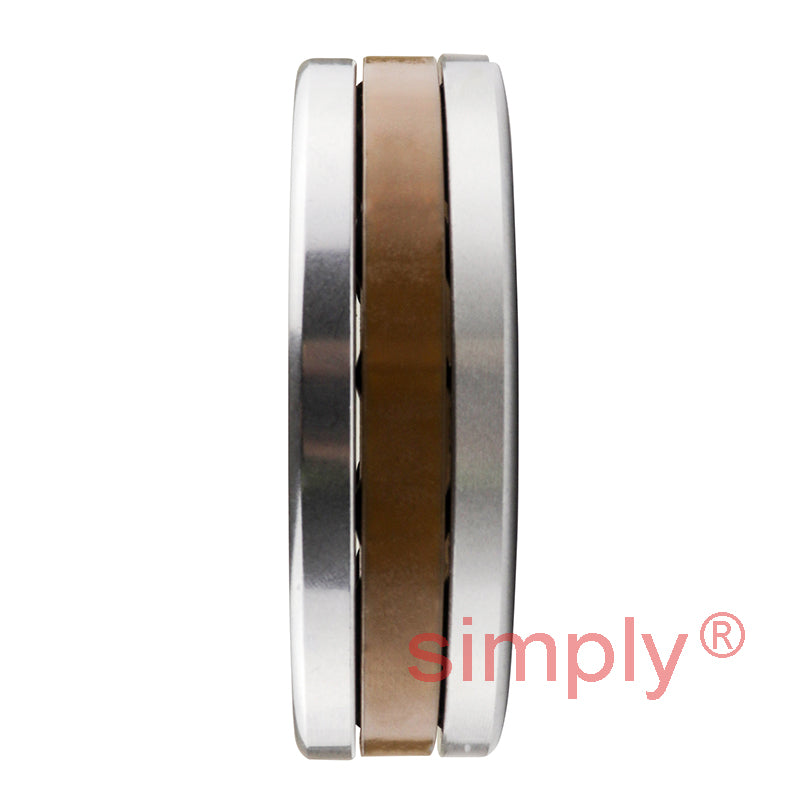

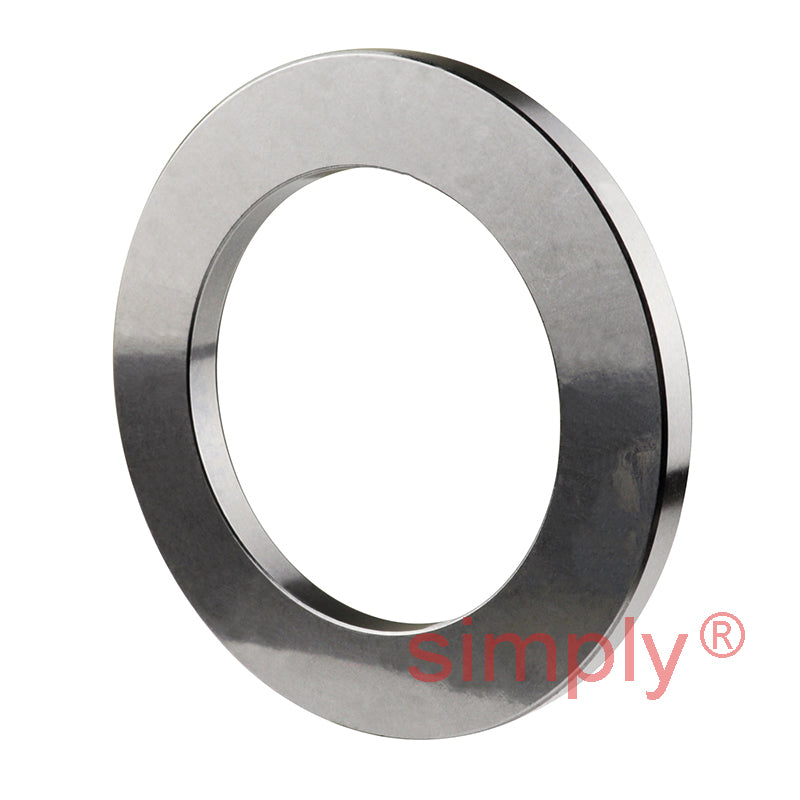

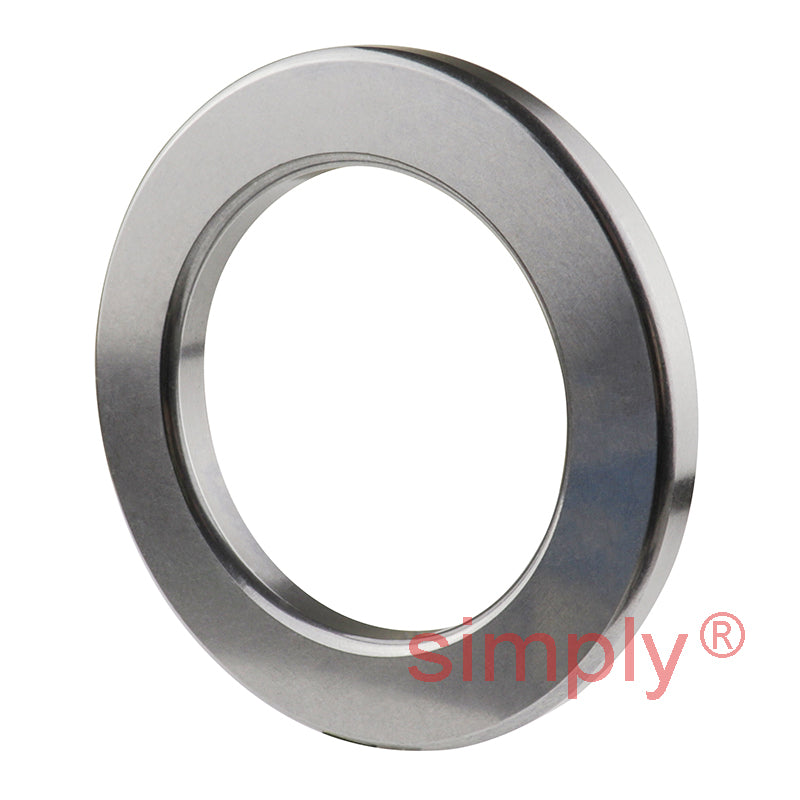

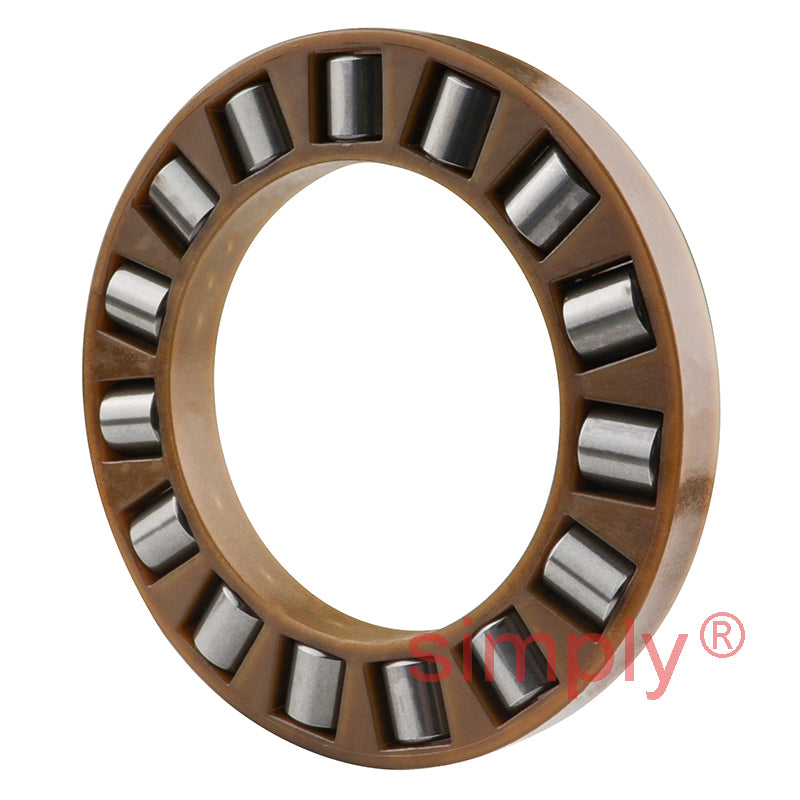

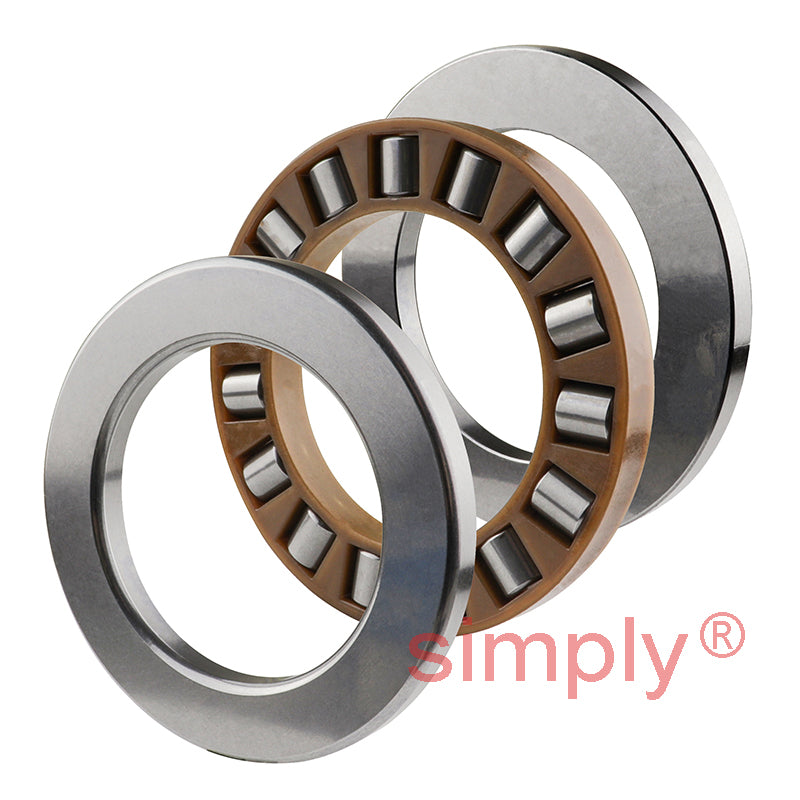

Major Brand 81210TN Cylindrical Roller Thrust Bearing with Nylon Cage 50x78x22mm
Major Brand 81210TN Cylindrical Roller Thrust Bearing with Nylon Cage 50x78x22mm
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
Equivalent to: AZ507822
In stock
Price Break
10+
CHF 59.66
19+
CHF 56.31
29+
CHF 55.64
39+
CHF 54.96
49+
CHF 54.29
74+
CHF 53.62
99+
CHF 50.27
199+
CHF 49.60
249+
CHF 48.93
499+
CHF 48.26
999+
CHF 46.92
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Equivalent: AZ507822
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 78mm
- Width:
- 22mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 78mm |
| H | 22mm |
| Dynamic load C | 91.5 kN |
| Static load Co | 300 kN |
| Fatigue load limit Pu | 31 kN |
| Min load factor A | 0.0072 |
| Reference speed | 1700 rpm |
| Limiting speed | 3400 rpm |
| Cage reference | K81210TN |
| Weight | 0.36 kg |
