SKU: 87504-KSM

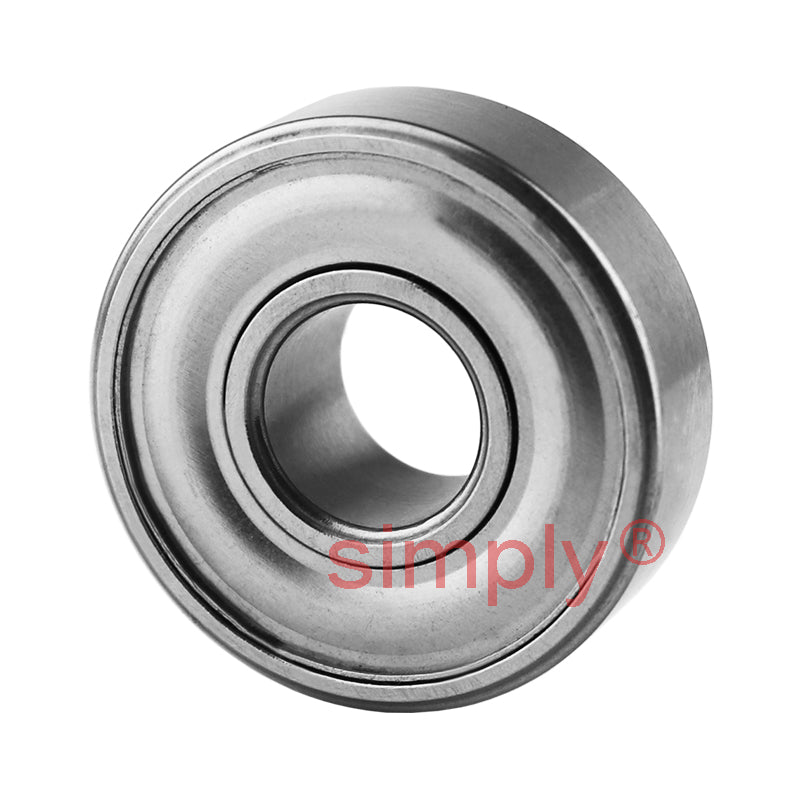

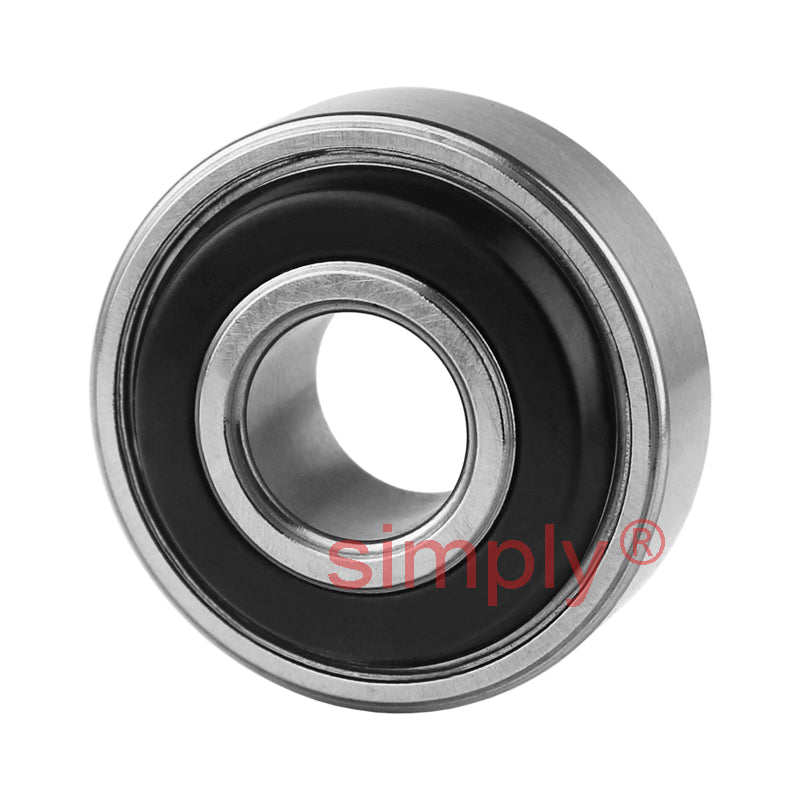

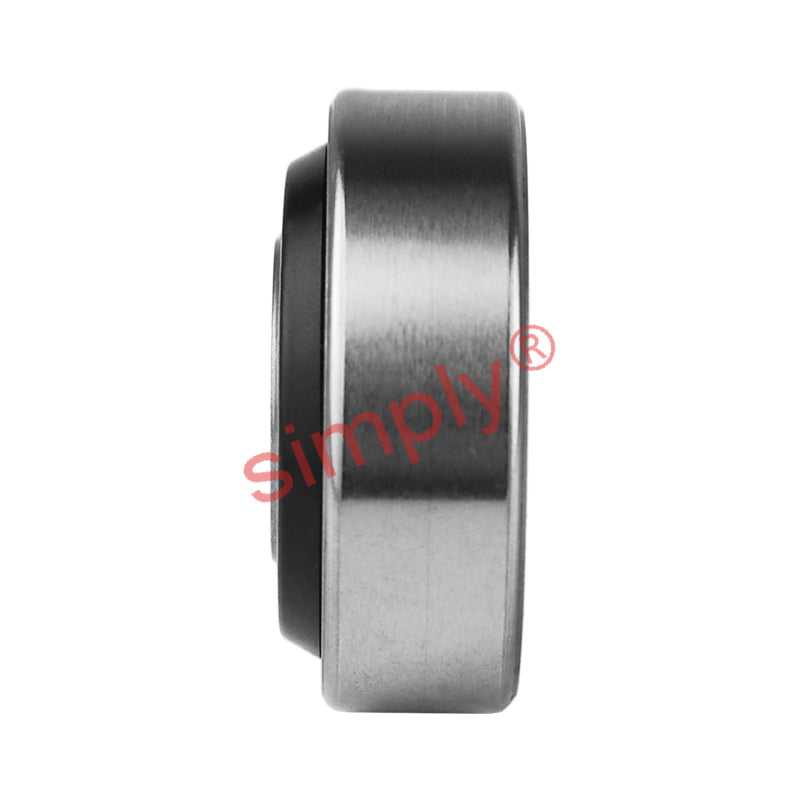

KSM 87504 Special Shielded Metric Ball Bearing with Extended Inner 20x47x15.9x14mm
KSM 87504 Special Shielded Metric Ball Bearing with Extended Inner 20x47x15.9x14mm
Regular price
CHF 27.37
ex VAT
Regular price
Sale price
CHF 27.37
ex VAT
Equivalent to: 204FSF
In stock
Price Break
10+
CHF 24.36
19+
CHF 22.99
29+
CHF 22.72
39+
CHF 22.44
49+
CHF 22.17
74+
CHF 21.90
99+
CHF 20.53
199+
CHF 20.25
249+
CHF 19.98
499+
CHF 19.71
999+
CHF 19.16
Couldn't load pickup availability
Description
Description
|
Specialist Shielded Ball Bearing: This bearing consist of chrome steel ball bearings and raceways with an extended inner raceway, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions. Benefits: Felt / Metal shielded on the front, extended inner race, metal shielded on the back. |
Equivalent: 204FSF
- Brand / Quality:
- KSM - Good Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 15.9mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| --- | Technical Data |
|---|---|
| d | 20mm |
| D | 47mm |
| B | 15.9mm |
| B1 | 14mm |
| --- | Speeds, Weights and Loads |
| Dynamic Load Rating Cr | 13 kN |
| Static Load Rating C0r | 6.7 kN |
| Limiting Speed in Grease | 10000 r/min |
| Weight | 0.11 kg |
