SKU: 9.5SS316-JUB

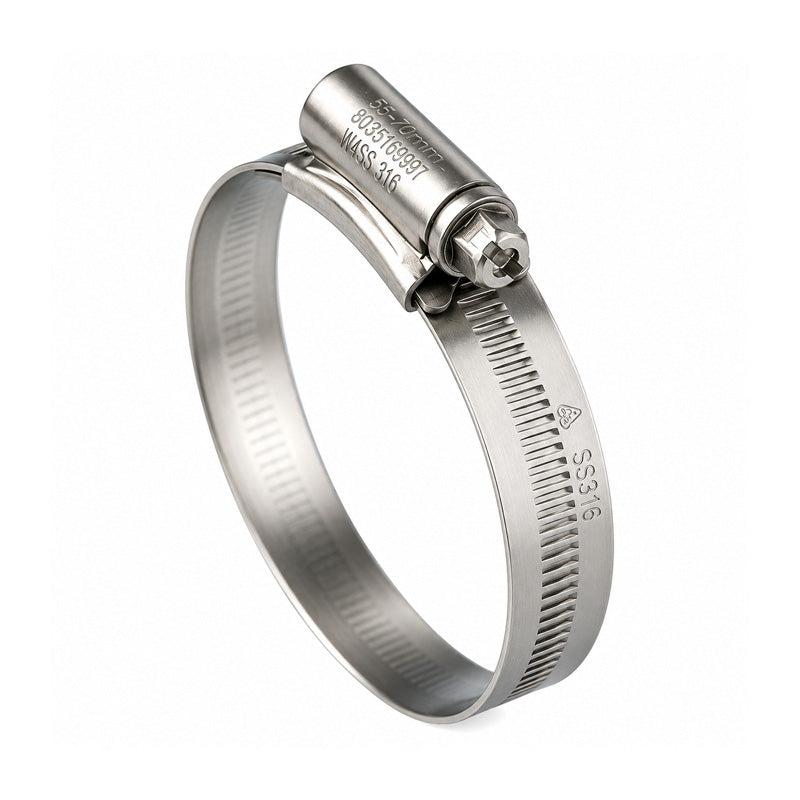

9.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 210mm-242mm Band Width 13mm

Name: 9.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 210mm-242mm Band Width 13mm
Brand: Jubilee
SKU: 9.5SS316-JUB
Price: 12.00 CHF
Availability: InStock

CHF 12.00 ex VAT

Sale Sold out

In stock

Price Break

3+ CHF 9.86

5+ CHF 9.46

9+ CHF 9.26

19+ CHF 8.96

49+ CHF 8.76

74+ CHF 8.27

99+ CHF 6.97

199+ CHF 0.00

249+ CHF 0.00

499+ CHF 0.00

999+ CHF 0.00

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee^® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.

Brand / Quality:: Jubilee - High Quality
Width:: 13mm
Min Adjustment Range:: 210mm
Max Adjustment Range:: 242mm

Technical

BS No.	242
Adjustment Range	210mm - 242mm
Adjustment Range	8-1/4 - 9-1/2 inch
Band Width (+/- 0.1)	13mm
Band Thickness (+/- 0.1)	0.914mm
Recommended Torque	5.9Nm
Maximum Torque	7.9Nm
Maximum Pressure	18 Psi
