SKU: AGR-20-32-FLEX

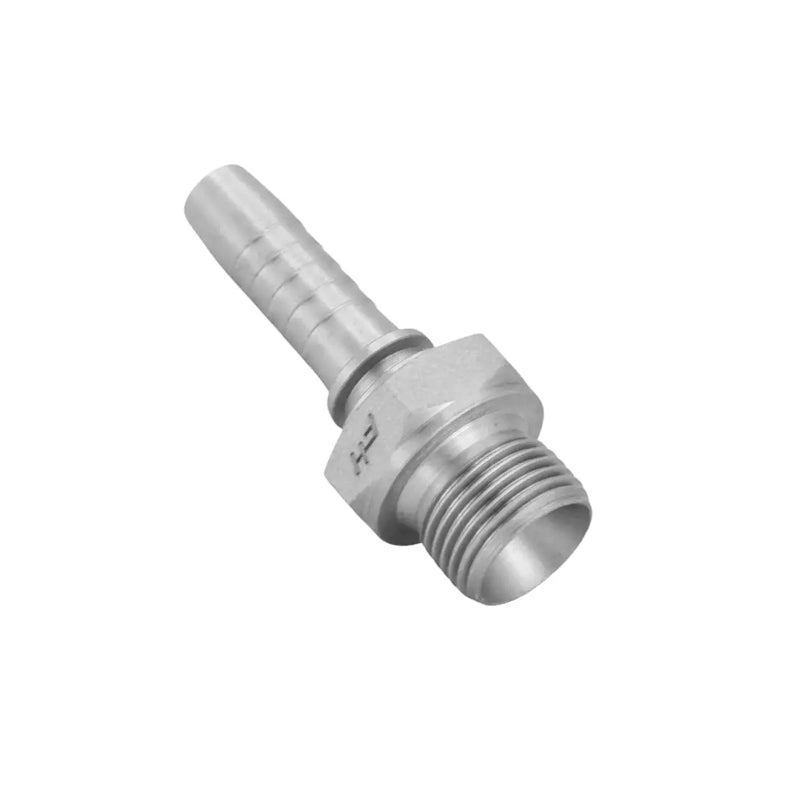

FLEXEQUIP/VOSS 1-1/4 inch BSP Male Two Piece Hose Fitting with 60 Degree Cone - Allow 2-3 Days
FLEXEQUIP/VOSS 1-1/4 inch BSP Male Two Piece Hose Fitting with 60 Degree Cone - Allow 2-3 Days
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
In stock
Price Break
3+
CHF 13.78
5+
CHF 13.01
9+
CHF 12.85
19+
CHF 12.70
49+
CHF 12.54
74+
CHF 12.39
99+
CHF 11.61
199+
CHF 11.46
249+
CHF 11.30
499+
CHF 11.15
999+
CHF 10.84
Description
Description
FLEXEQUIP/VOSS Male Two Piece Hose Fitting with 60 Degree Cone: These hose fittings are versatile and durable parallel male hose fitting, commonly used in the UK and Ireland for medium to high-pressure hydraulic applications. Available with either BSP or NPT thread, this fitting ensures a reliable, leak-free connection. BSP versions conform to ISO 12151-6 (ISO 8434-6) standards, while NPT fittings feature an NPTF tapered thread and meet SAE J 516 specifications. Designed for demanding environments, this fitting provides optimal performance and is ideal for a wide range of hydraulic systems.
Benefits: High compatibility, leek-free connections, durability under pressure
- Brand / Quality:
- FLEXEQUIP/VOSS - High Quality
- Thread Size:
- 1-1/4 inch BSP
- Length:
- 97mm
- Type:
- AGR
- Angle:
- * Straight
- Cone Angle:
- 60 degrees
Technical
Technical
| Hose Bore | 1-1/4 inch |
|---|---|
| Thread (d2) | 1-1/4 inch |
| DN Size | 31mm |
| Total Length (lg) | 97mm |
| Length (lh) | 23mm |
| Cut Off (lx) | 43mm |
| Bore Size (dx) | 26mm |
| Nut Size (SW) | 50mm |
| Angle | * Straight degrees |
| Cone Angle | 60 degrees |
| Weight | 0.44 kg |
