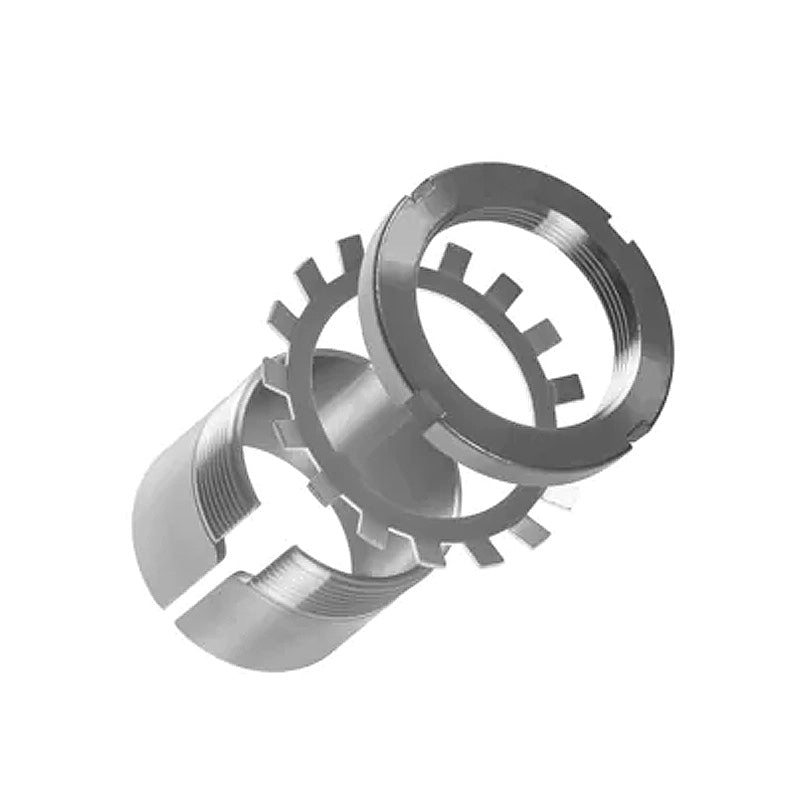

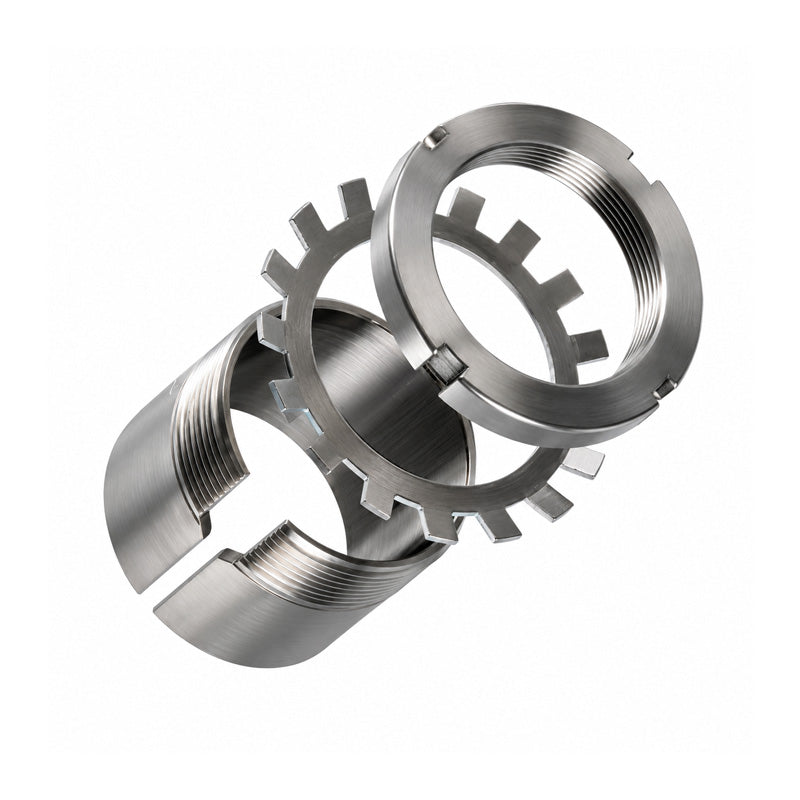

• SKF AH309 Withdrawal Sleeve for 40mm shaft
1 1

SKU: AH309-SKF

SKF AH309 Withdrawal Sleeve for 40mm shaft

SKF AH309 Withdrawal Sleeve for 40mm shaft
CHF 93.00 ex VAT
CHF 93.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 73.96
5+ CHF 69.81
10+ CHF 68.98
20+ CHF 68.15
49+ CHF 67.31
74+ CHF 66.48
99+ CHF 62.33
199+ CHF 61.50
249+ CHF 60.67
499+ CHF 59.83
999+ CHF 58.17
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
40mm
Outside Diameter:
45mm
Width:
31mm
Technical
--- Dimensions
d1 40mm
d 45mm
B1 31mm
B2 34mm
G Thread 50x1.5mm
G1 6mm
Weight 0.12 kg
--- Assembly Parts
Sleeve AH309
Nut KM10
Hydraulic Nut HMV10E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2209K+taper>2209K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1309K+taper>1309K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22209K+taper>22209K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21309K+taper>21309K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2209KTN9+taper>C2209KTN9</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2209KV+taper>C2209KV</a>
