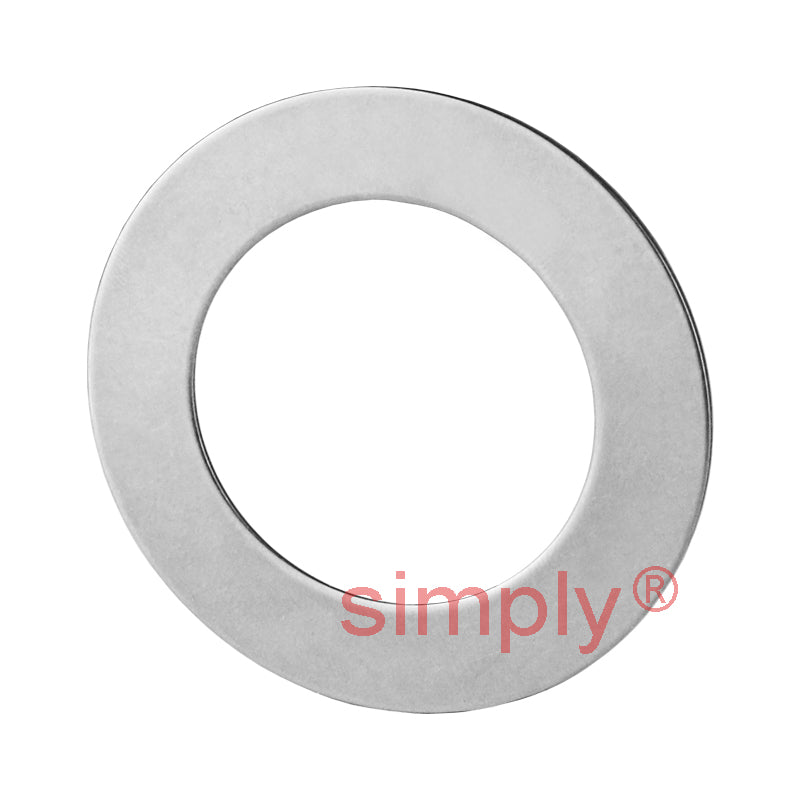

• AS1528 Budget Thrust Washer Series AS 15x28x1mm
1 1

SKU: AS1528-EU

AS1528 Budget Thrust Washer Series AS 15x28x1mm

AS1528 Budget Thrust Washer Series AS 15x28x1mm
CHF 1.00 ex VAT
CHF 1.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 0.47
20+ CHF 0.36
50+ CHF 0.26
100+ CHF 0.21
500+ CHF 0.17
1000+ CHF 0.13
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy.
Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
15mm
Outside Diameter:
28mm
Width:
1mm
Technical
d 15mm
d1 28mm
D 28mm
D1 16mm
B 1mm
r1r2 0.3mm
Material Spring Steel (AISI 1074 / SAE 5165)
Weight 9 g
