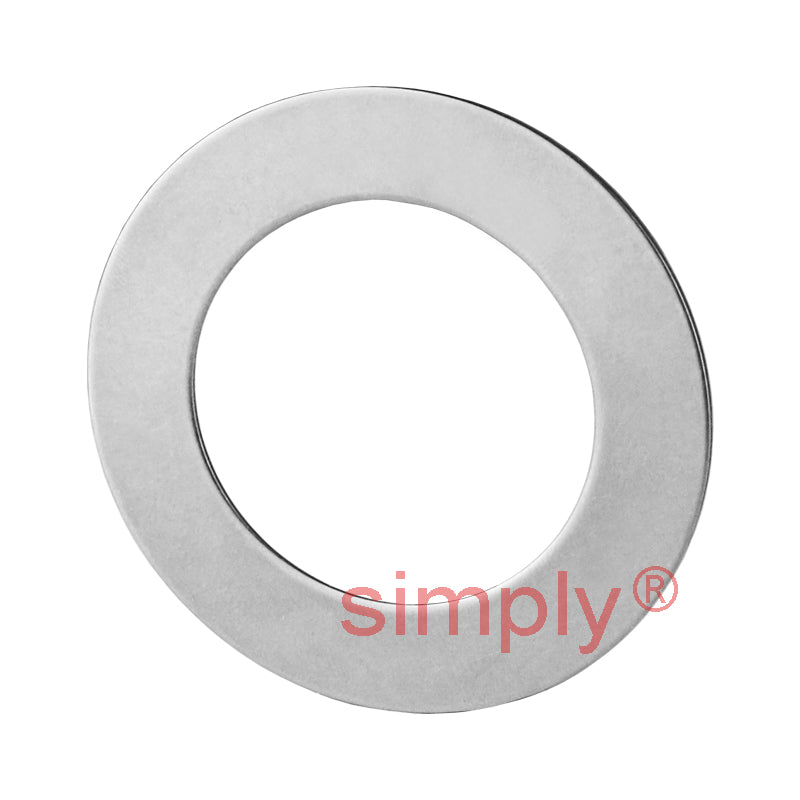

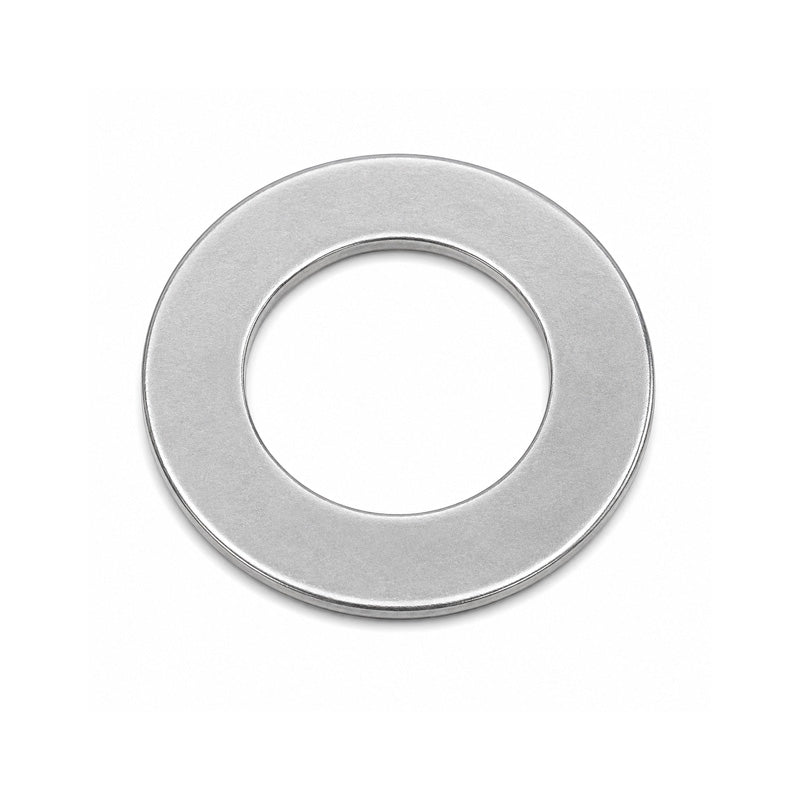

• AS6590 Budget Thrust Washer Series AS 65x90x1mm
1 1

SKU: AS6590-EU

AS6590 Budget Thrust Washer Series AS 65x90x1mm

AS6590 Budget Thrust Washer Series AS 65x90x1mm
CHF 2.00 ex VAT
CHF 2.00 ex VAT
Sale Sold out

In stock

Price Break
5+ CHF 1.17
10+ CHF 1.00
20+ CHF 0.92
50+ CHF 0.84
100+ CHF 0.67
500+ CHF 0.58
1000+ CHF 0.50
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy.
Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
65mm
Outside Diameter:
90mm
Width:
1mm
Technical
d 65mm
d1 90mm
D 90mm
D1 67mm
B 1mm
r1r2 1mm
Material Spring Steel (AISI 1074 / SAE 5165)
Weight 115 g
