SKU: AS85110-EU

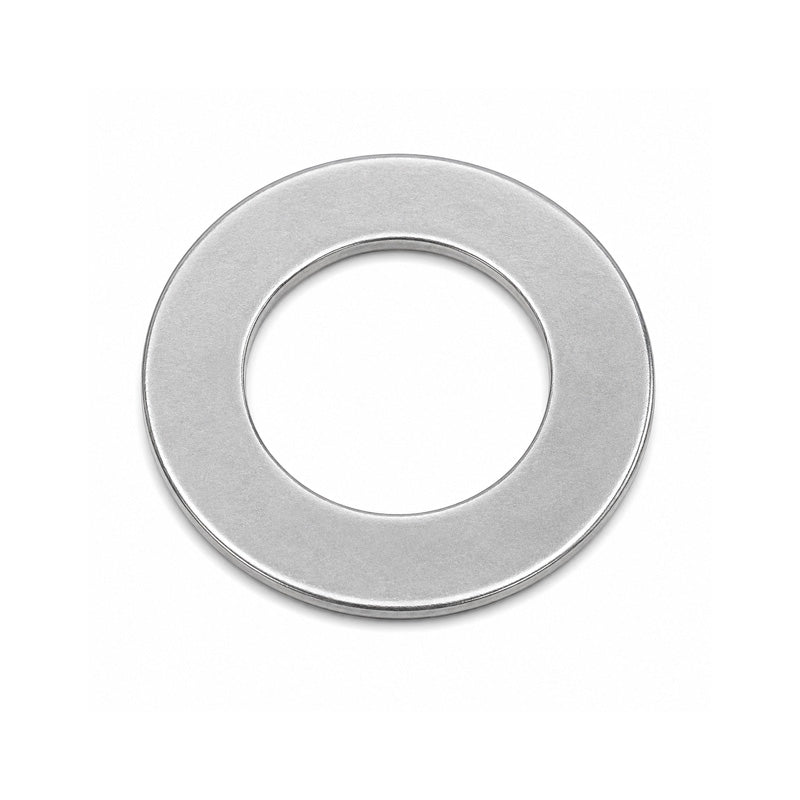

AS85110 Budget Thrust Washer Series AS 85x110x1mm
AS85110 Budget Thrust Washer Series AS 85x110x1mm
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
In stock
Price Break
10+
CHF 5.41
19+
CHF 5.10
29+
CHF 5.04
39+
CHF 4.98
49+
CHF 4.92
74+
CHF 4.86
99+
CHF 4.56
199+
CHF 4.50
249+
CHF 4.43
499+
CHF 4.37
999+
CHF 4.25
Description
Description
|
Budget AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 110mm
- Width:
- 1mm
Technical
Technical
| d | 85mm |
|---|---|
| d1 | 110mm |
| D | 110mm |
| D1 | 87mm |
| B | 1mm |
| r1r2 | 1mm |
| Material | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | 160 g |
