SKU: ASFB203-NTN

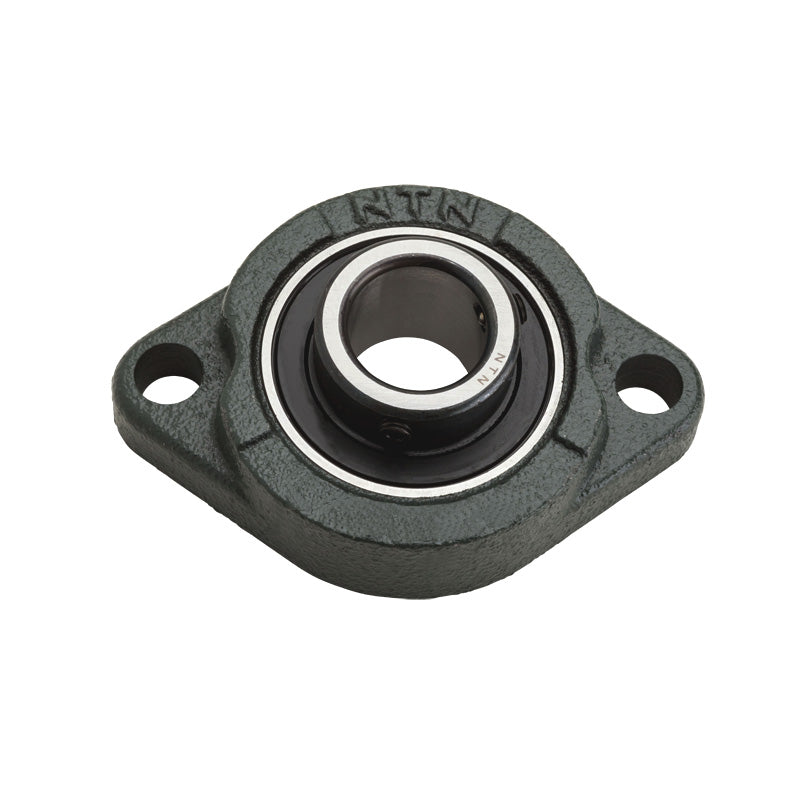

NTN ASFB203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
NTN ASFB203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
Regular price
CHF 23.00
ex VAT
Regular price
Sale price
CHF 23.00
ex VAT
In stock
Price Break
3+
CHF 19.74
4+
CHF 18.94
9+
CHF 18.54
19+
CHF 17.95
49+
CHF 17.55
99+
CHF 16.55
499+
CHF 13.96
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
ASFB200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Style:
- ASFB
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| Shaft diameter | 17mm |
|---|---|
| H | 81mm |
| J | 63.5mm |
| A<sub>2</sub> | 9.5mm |
| A<sub>1</sub> | 9.5mm |
| A | 18mm |
| N | 7mm |
| L | 56mm |
| A<sub>0</sub> | 25.5mm |
| B | 22mm |
| S | 6mm |
| Fixing bolt | M6 |
| Mass | 0.2 kg |
