SKU: ASFD207-NTN

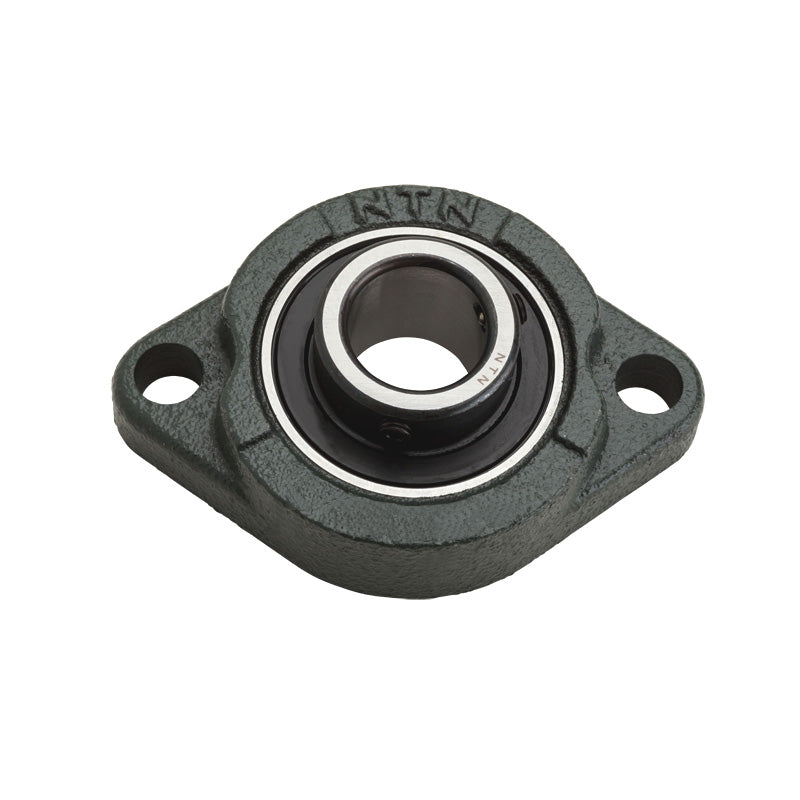

NTN ASFD207 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
NTN ASFD207 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
Regular price
CHF 43.00
ex VAT
Regular price
Sale price
CHF 43.00
ex VAT
In stock
Price Break
3+
CHF 33.58
4+
CHF 31.69
9+
CHF 31.32
19+
CHF 30.94
49+
CHF 30.56
99+
CHF 30.18
499+
CHF 28.30
999+
CHF 27.92
1999+
CHF 27.54
2999+
CHF 27.17
4999+
CHF 26.41
Share this product
Description
Description
ASFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- ASFD
- Bolt Hole Centres:
- 100mm
Technical
Technical
| Shaft diameter | 35mm |
|---|---|
| H | 125mm |
| J | 100mm |
| A<sub>2</sub> | 12.5mm |
| A | 22mm |
| N | 12mm |
| L | 94mm |
| A<sub>0</sub> | 38mm |
| B | 34mm |
| S | 8.5mm |
| Fixing bolt | M10 |
| Mass | 0.9 kg |
