SKU: AX41932-MB

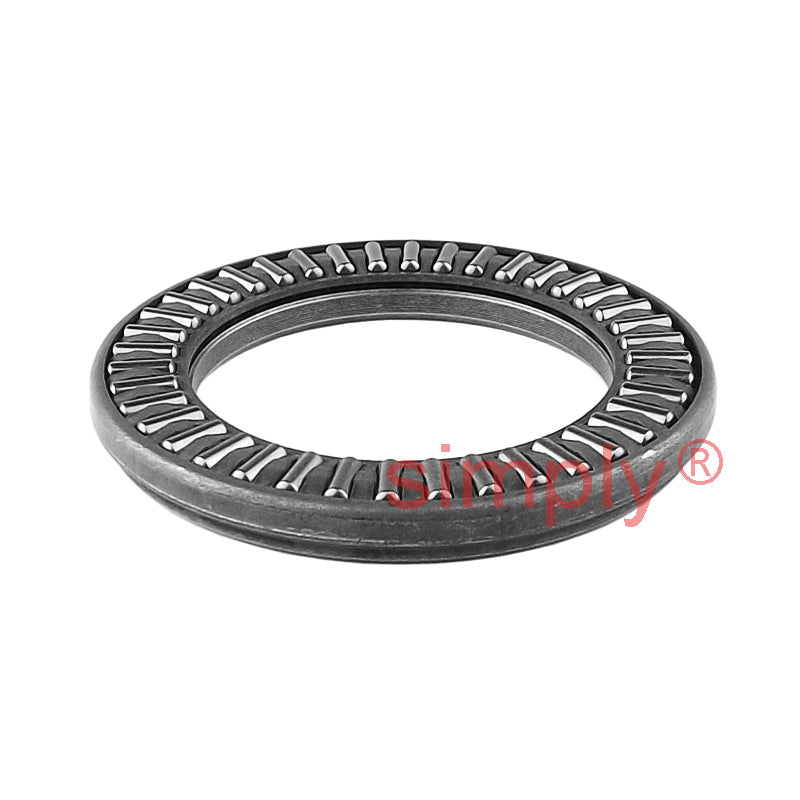

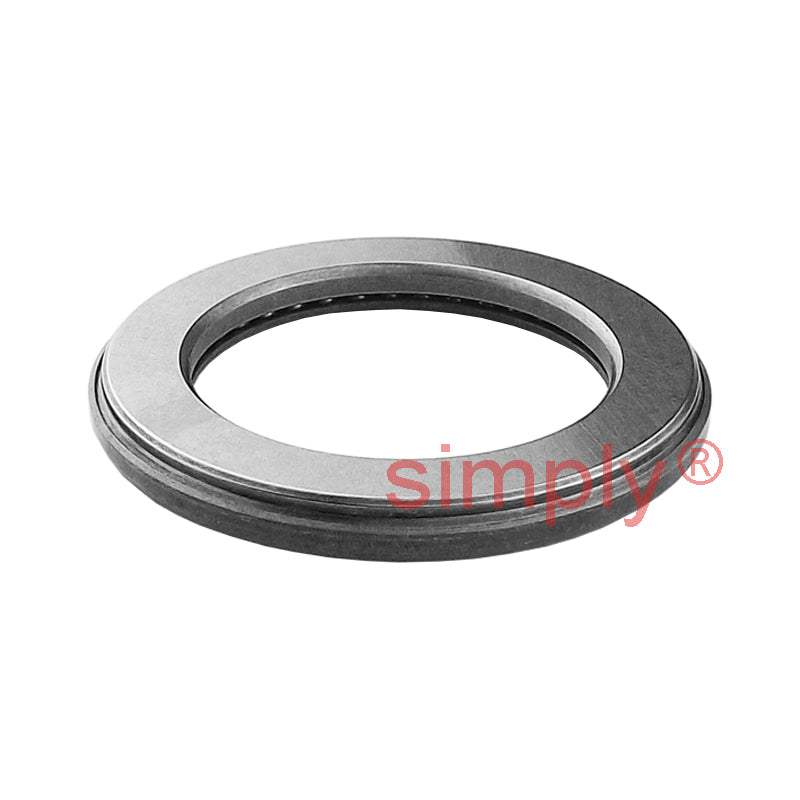

Major Brand AX41932 Thick Needle Roller Thrust Bearing 19x32x4mm Allow 2-3 Days
Major Brand AX41932 Thick Needle Roller Thrust Bearing 19x32x4mm Allow 2-3 Days
Regular price
CHF 51.33
ex VAT
Regular price
Sale price
CHF 51.33
ex VAT
In stock
Price Break
10+
CHF 45.68
19+
CHF 43.12
29+
CHF 42.60
39+
CHF 42.09
49+
CHF 41.58
74+
CHF 41.06
99+
CHF 38.50
199+
CHF 37.98
249+
CHF 37.47
499+
CHF 36.96
999+
CHF 35.93
Couldn't load pickup availability
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 19mm
- Outside Diameter:
- 32mm
- Width:
- 4mm
Technical
Technical
| Dc1 | 19mm |
|---|---|
| D | 32mm |
| B1 | 4mm |
| Eb | 21mm |
| Ea | 28.6mm |
| Dynamic load | 8 kN |
| Static load | 23.3 kN |
| Speed rating in oil | 10000 rpm |
| Mass | 0.013 kg |
