SKU: AX53552-MB

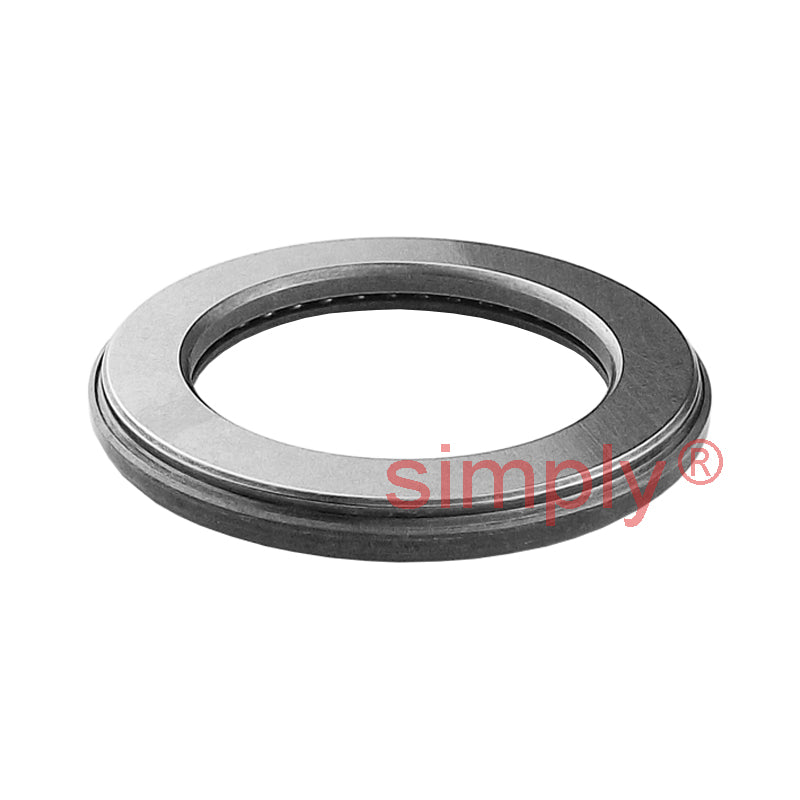

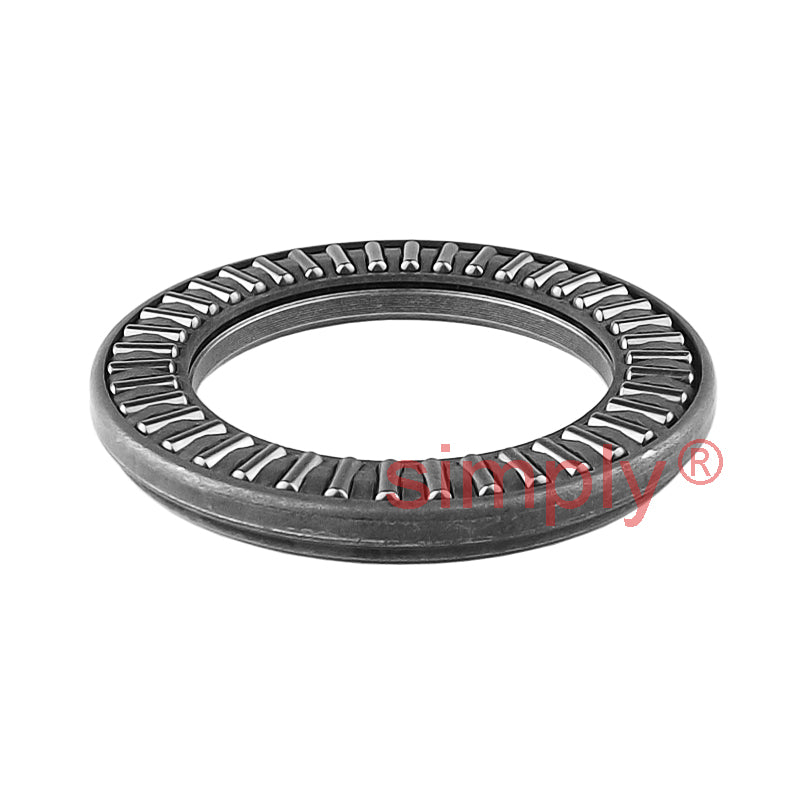

Major Brand AX53552 Thick Needle Roller Thrust Bearing 35x52x5mm
Major Brand AX53552 Thick Needle Roller Thrust Bearing 35x52x5mm
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
In stock
Price Break
10+
CHF 39.77
19+
CHF 37.53
29+
CHF 37.08
39+
CHF 36.64
49+
CHF 36.19
74+
CHF 35.74
99+
CHF 33.51
199+
CHF 33.06
249+
CHF 32.62
499+
CHF 32.17
999+
CHF 31.28
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 52mm
- Width:
- 5mm
Technical
Technical
| Dc1 | 35mm |
|---|---|
| D | 52mm |
| B1 | 5mm |
| Eb | 37.2mm |
| Ea | 49mm |
| Dynamic load | 18.9 kN |
| Static load | 84 kN |
| Speed rating in oil | 5500 rpm |
| Mass | 0.035 kg |
