SKU: AX9120155-NADELLA

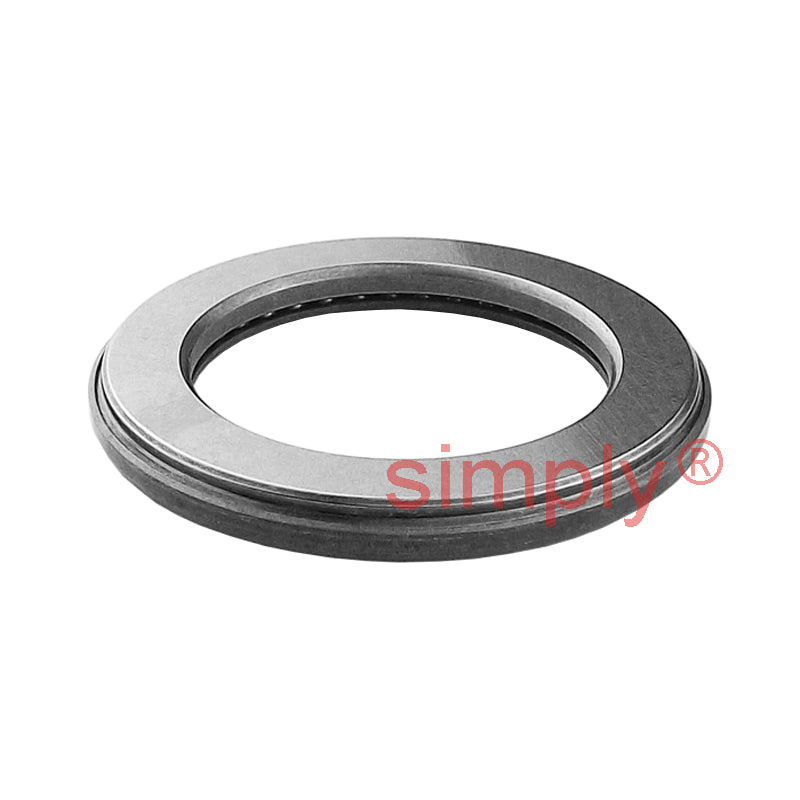

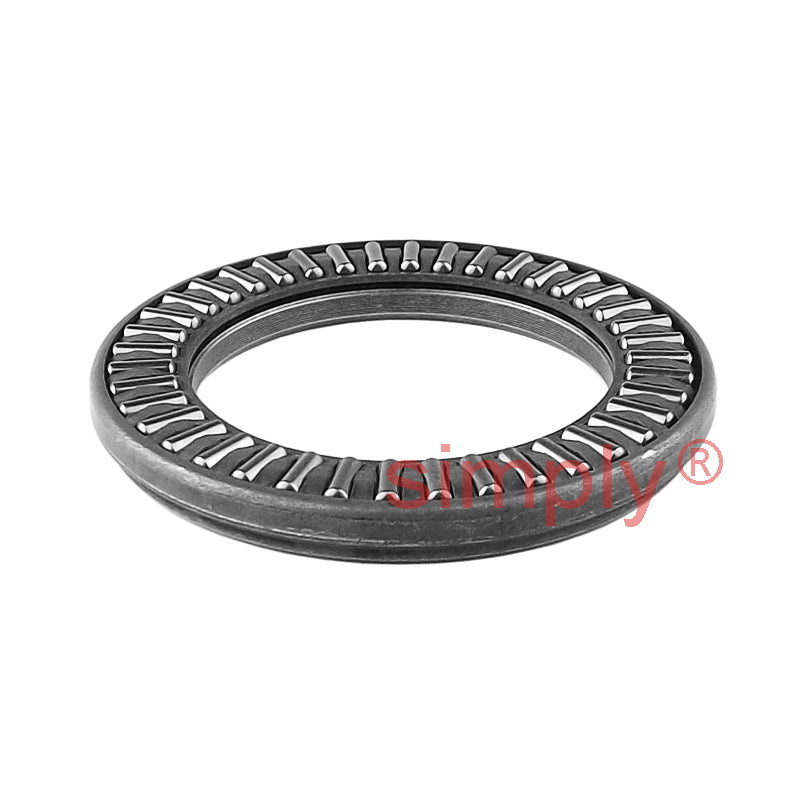

Nadella AX9120155 Thick Needle Roller Thrust Bearing 120x155x9mm Allow 2-3 D
Nadella AX9120155 Thick Needle Roller Thrust Bearing 120x155x9mm Allow 2-3 D
Out of stock
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 155mm
- Width:
- 9mm
Technical
Technical
| Dc1 | 120mm |
|---|---|
| D | 155mm |
| B1 | 9mm |
| Eb | 124.2mm |
| Ea | 147.3mm |
| Dynamic load | 80 kN |
| Static load | 590 kN |
| Speed rating in oil | 1800 rpm |
| Mass | 0.424 kg |
