SKU: AXK100135-MB

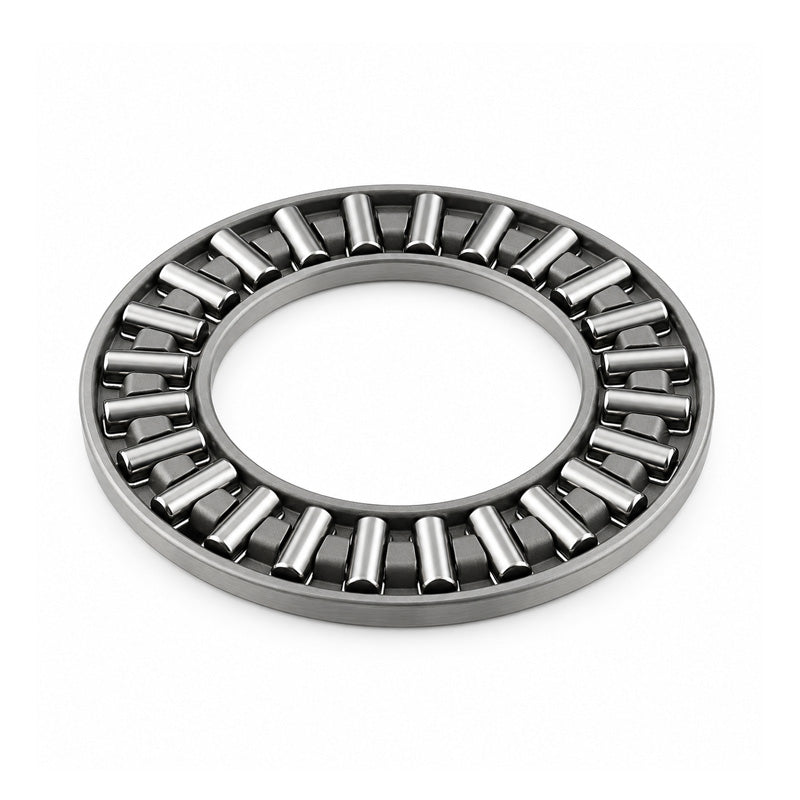

Major Brand AXK100135 Needle Roller Cage 100x135x4mm
Major Brand AXK100135 Needle Roller Cage 100x135x4mm
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
In stock
Price Break
10+
CHF 19.19
19+
CHF 18.11
29+
CHF 17.89
39+
CHF 17.68
49+
CHF 17.46
74+
CHF 17.25
99+
CHF 16.17
199+
CHF 15.95
249+
CHF 15.74
499+
CHF 15.52
999+
CHF 15.09
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 135mm
- Width:
- 4mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 135mm |
| Dw | 4mm |
| Ea | 105mm |
| Eb | 133mm |
| Dynamic load | 76500 N |
| Static load | 560000 N |
| Fatigue load limit Pu | 65500 N |
| Speed in grease | 850 rpm |
| Speed in oil | 1200 rpm |
| Weight (assembly) | 105 g |
| d1 | 135mm |
| D | 135mm |
| D1 | 102mm |
| B | 7mm |
