SKU: AXK1109-NTN

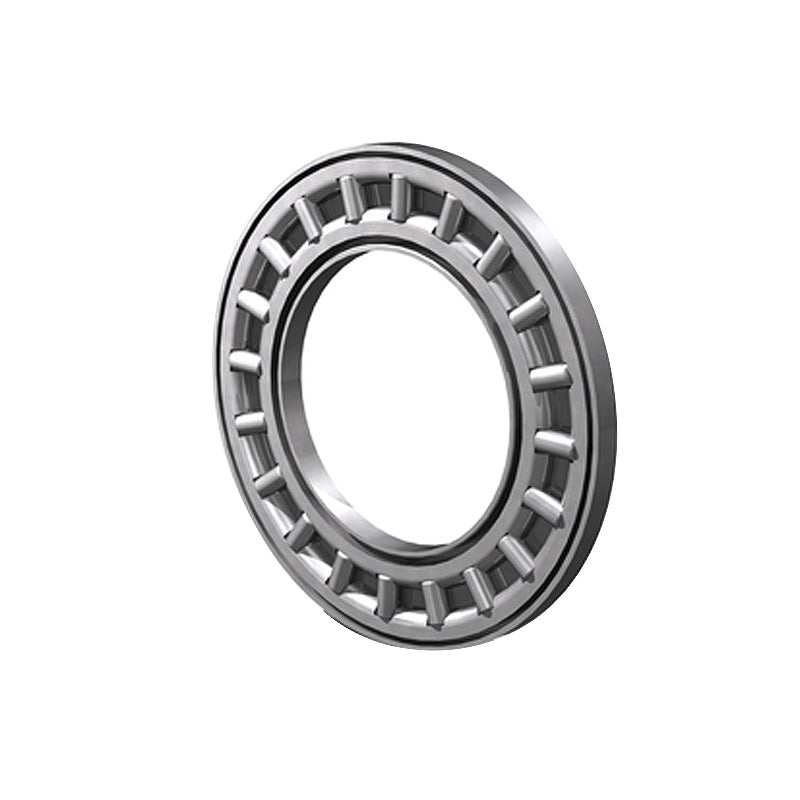

NTN AXK1109 Needle Roller Cage Only 45x65x3mm - Allow 2-3 Days
NTN AXK1109 Needle Roller Cage Only 45x65x3mm - Allow 2-3 Days
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
Low stock
Price Break
3+
CHF 4.91
4+
CHF 4.64
9+
CHF 4.58
19+
CHF 4.53
49+
CHF 4.47
99+
CHF 4.42
499+
CHF 4.14
999+
CHF 4.08
1999+
CHF 4.03
2999+
CHF 3.97
4999+
CHF 3.86
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 65mm
- Width:
- 3mm
Technical
Technical
| Dc1 - Inside diameter | 45mm |
|---|---|
| Dc - Outside diameter | 65mm |
| Dw - Roller Width | 3mm |
| AS washer reference | AS1109 |
| WS inner ring reference | WS81109 |
| GS outer ring reference | GS81109 |
| Ea - Rollers reference outer diameter | 62.4mm |
| Eb - Rollers reference inner diameter | 50.5mm |
| Ca - Dynamic axial load rating | 29.8 kN |
| C0a - Static axial load rating | 128 kN |
| Cua - Limit axial load rating | 15.6 kN |
| Grease lubrication limit speed | 1100 tr/min |
| Oil lubrication limit speed | 4300 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
