SKU: AXK1130-NTN

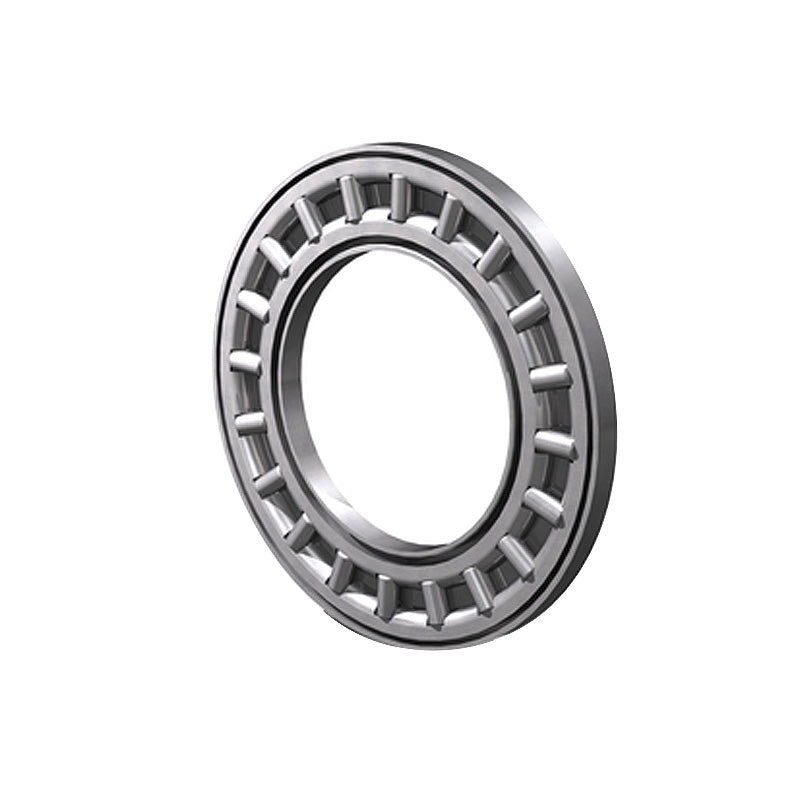

NTN AXK1130 Needle Roller Cage Only 150x190x5mm - Allow 2-3 Days
NTN AXK1130 Needle Roller Cage Only 150x190x5mm - Allow 2-3 Days
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
3+
CHF 65.83
4+
CHF 63.17
9+
CHF 61.84
19+
CHF 59.84
49+
CHF 58.51
99+
CHF 55.19
499+
CHF 46.54
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 190mm
- Width:
- 5mm
Technical
Technical
| Dc1 - Inside diameter | 150mm |
|---|---|
| Dc - Outside diameter | 190mm |
| Dw - Roller Width | 5mm |
| AS washer reference | AS1130 |
| WS inner ring reference | WS81130 |
| GS outer ring reference | GS81130 |
| Ea - Rollers reference outer diameter | 184.2mm |
| Eb - Rollers reference inner diameter | 156mm |
| Ca - Dynamic axial load rating | 149 kN |
| C0a - Static axial load rating | 1020 kN |
| Cua - Limit axial load rating | 106 kN |
| Grease lubrication limit speed | 350 tr/min |
| Oil lubrication limit speed | 1400 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
