SKU: AXK130170-KOYO

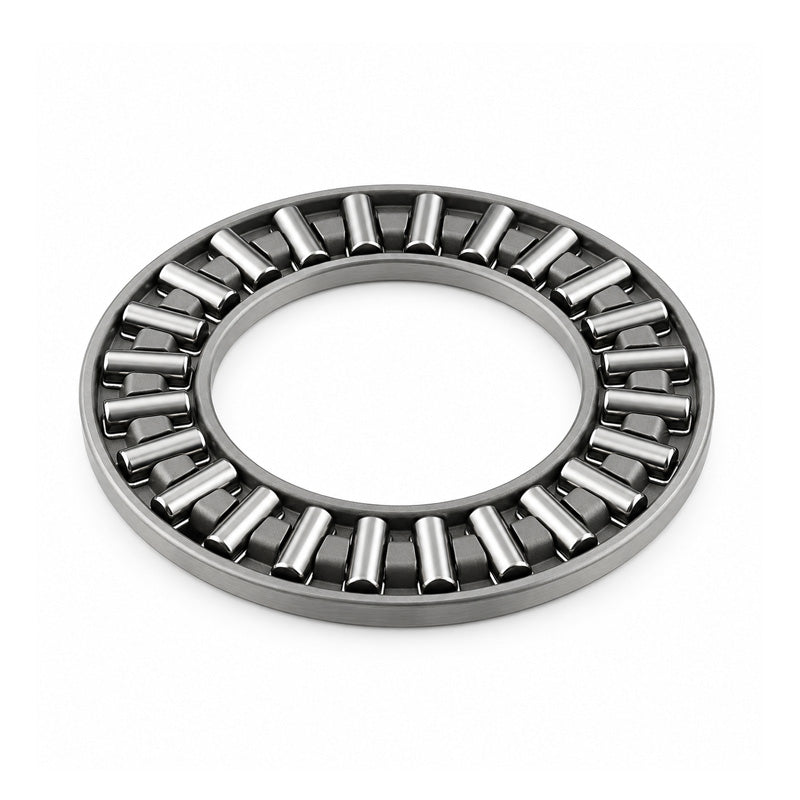

AXK130170 Koyo Needle Roller Cage 130x170x5mm
AXK130170 Koyo Needle Roller Cage 130x170x5mm
Regular price
CHF 74.53
ex VAT
Regular price
Sale price
CHF 74.53
ex VAT
In stock
Price Break
5+
CHF 73.78
10+
CHF 70.80
20+
CHF 69.31
50+
CHF 67.08
100+
CHF 65.59
500+
CHF 61.86
1000+
CHF 52.17
Couldn't load pickup availability
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 170mm
- Width:
- 5mm
Technical
Technical
| d | 130mm |
|---|---|
| D | 170mm |
| Dw | 5mm |
| Ea | 136mm |
| Eb | 167mm |
| Dynamic load | 112000 N |
| Static load | 830000 N |
| Fatigue load limit Pu | 93000 N |
| Speed in grease | 700 rpm |
| Speed in oil | 950 rpm |
| Weight (assembly) | 205 g |
| d1 | 170mm |
| D | 170mm |
| D1 | 132mm |
| B | 9mm |
