SKU: AXK150190-MB

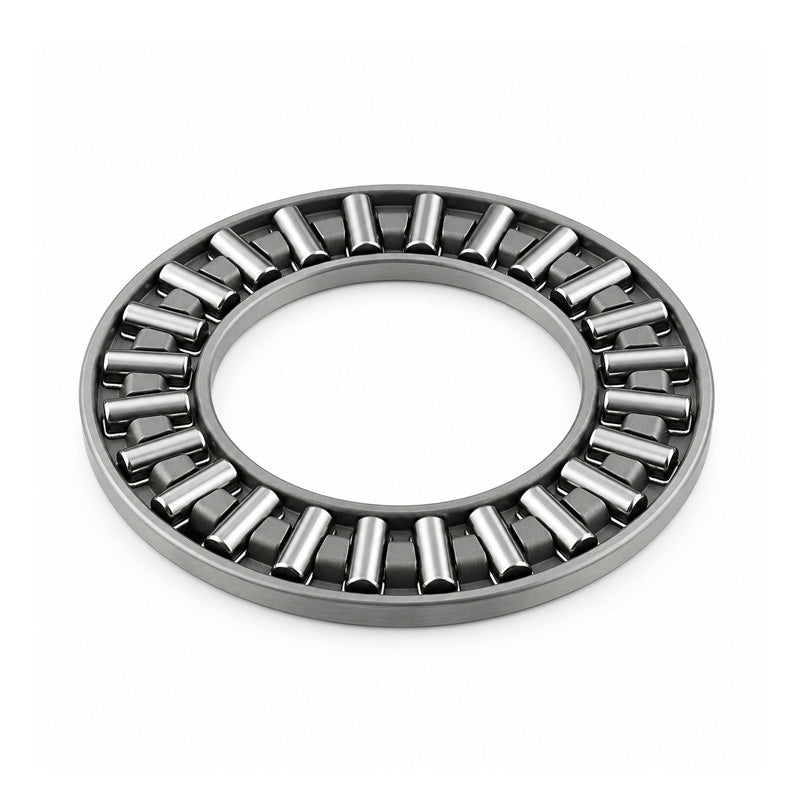

Major Brand AXK150190 Needle Roller Cage 150x190x5mm
Major Brand AXK150190 Needle Roller Cage 150x190x5mm
Regular price
CHF 170.00
ex VAT
Regular price
Sale price
CHF 170.00
ex VAT
In stock
Price Break
10+
CHF 135.33
19+
CHF 127.73
29+
CHF 126.21
39+
CHF 124.69
49+
CHF 123.17
74+
CHF 121.65
99+
CHF 114.05
199+
CHF 112.53
249+
CHF 111.01
499+
CHF 109.48
999+
CHF 106.44
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 190mm
- Width:
- 5mm
Technical
Technical
| d | 150mm |
|---|---|
| D | 190mm |
| Dw | 5mm |
| Ea | 156mm |
| Eb | 187mm |
| Dynamic load | 120000 N |
| Static load | 950000 N |
| Fatigue load limit Pu | 102000 N |
| Speed in grease | 630 rpm |
| Speed in oil | 850 rpm |
| Weight (assembly) | 230 g |
| d1 | 188mm |
| D | 190mm |
| D1 | 152mm |
| B | 9.5mm |
