SKU: AXK1831

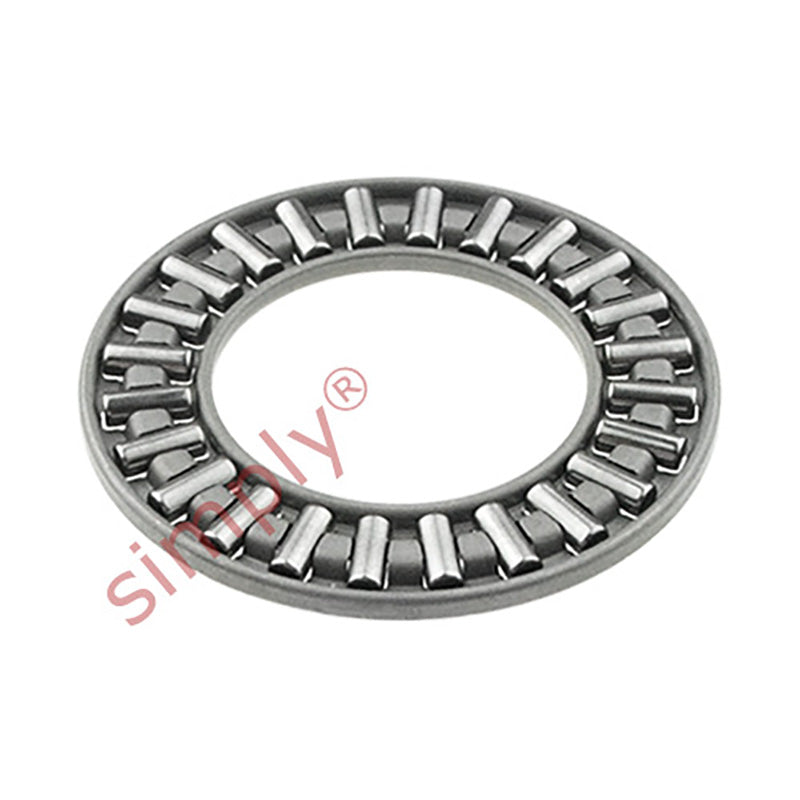

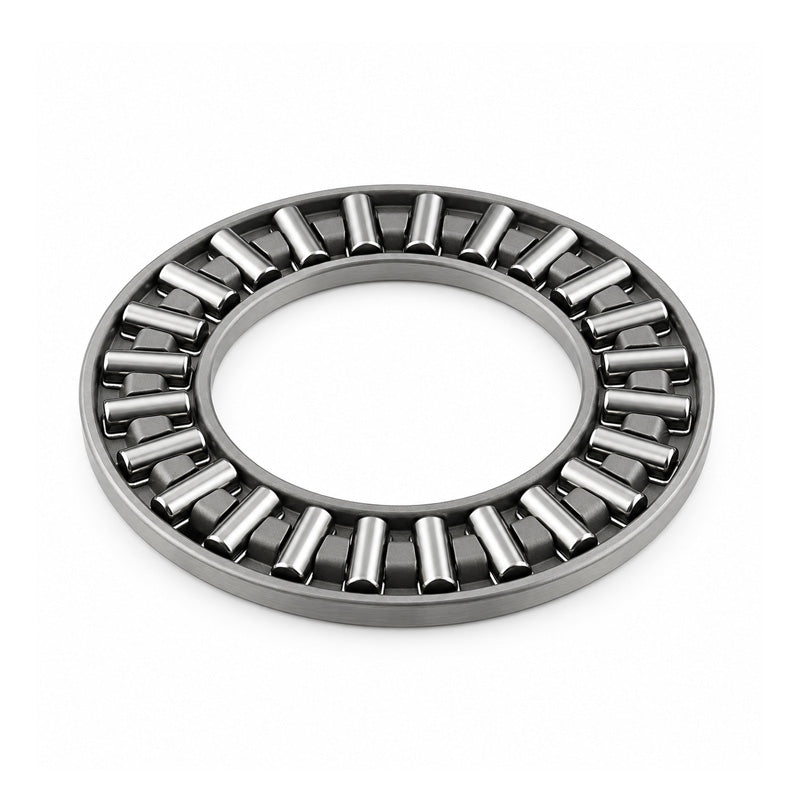

Major Brand AXK1831 Needle Roller Cage 18x31x2mm
Major Brand AXK1831 Needle Roller Cage 18x31x2mm
Regular price
CHF 5.00
ex VAT
Regular price
Sale price
CHF 5.00
ex VAT
In stock
Price Break
10+
CHF 3.79
19+
CHF 3.58
29+
CHF 3.54
39+
CHF 3.50
49+
CHF 3.45
74+
CHF 3.41
99+
CHF 3.20
199+
CHF 3.15
249+
CHF 3.11
499+
CHF 3.07
999+
CHF 2.98
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 31mm
- Width:
- 2mm
Technical
Technical
| d | 18mm |
|---|---|
| D | 31mm |
| Dw | 2mm |
| Dynamic load | 9550 N |
| Static load | 34400N |
| Raceway Washer | LS1831 |
| Thrust Washer | AS1831 |
