SKU: AXW25-MB

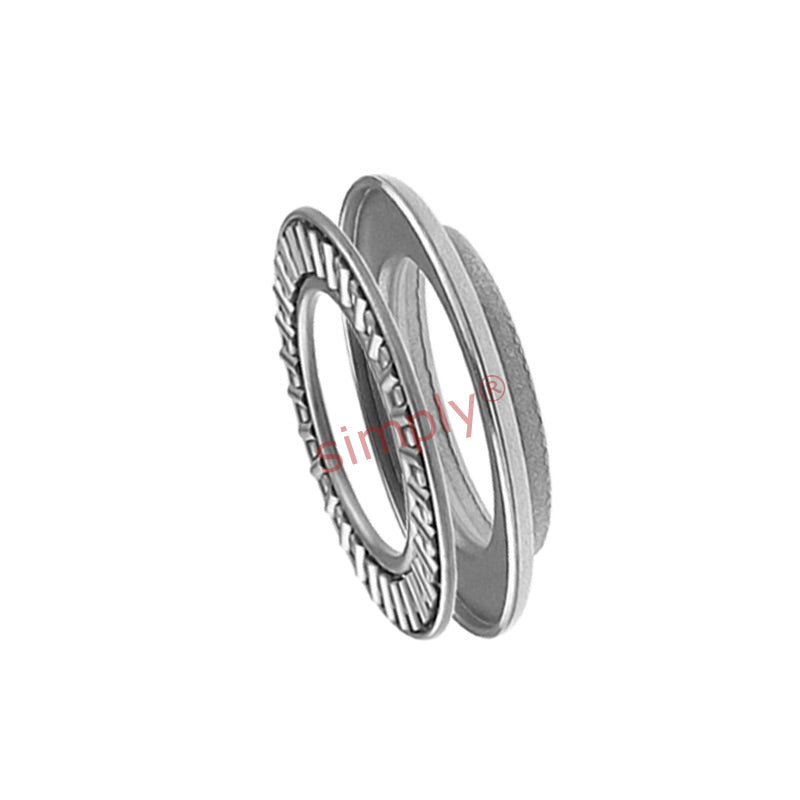

INA / SKF AXW25 Thrust Race with Centering Spigot 25x45x3.2mm
INA / SKF AXW25 Thrust Race with Centering Spigot 25x45x3.2mm
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
In stock
Price Break
10+
CHF 6.05
19+
CHF 5.71
29+
CHF 5.64
39+
CHF 5.57
49+
CHF 5.51
74+
CHF 5.44
99+
CHF 5.10
199+
CHF 5.03
249+
CHF 4.96
499+
CHF 4.90
999+
CHF 4.76
Share this product
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 45mm
- Width:
- 3.2mm
Technical
Technical
| Inside diameter | 25mm |
|---|---|
| Outside diameter | 45mm |
| B | 3.2mm |
| B1 | 4mm |
| D1 | 32mm |
| Ea | 29mm |
| Eb | 41mm |
| Weight | 20 g |
| Dynamic load | 14700 N |
| Static load | 58000 N |
| Fatigue load limit | 5900 N |
| Limiting speed | 8400 rpm |
| Reference speed | 4250 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS2542">Click Here AS2542 |
