SKU: AXW35-MB

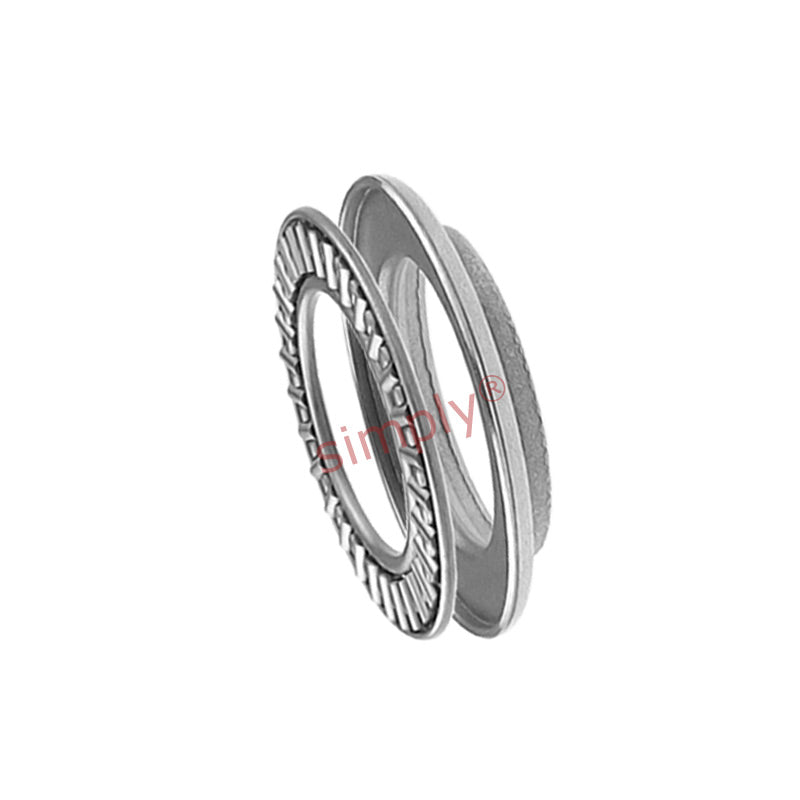

INA / SKF AXW35 Thrust Race with Centering Spigot 35x55x3.2mm
INA / SKF AXW35 Thrust Race with Centering Spigot 35x55x3.2mm
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
In stock
Price Break
10+
CHF 7.70
19+
CHF 7.27
29+
CHF 7.18
39+
CHF 7.09
49+
CHF 7.01
74+
CHF 6.92
99+
CHF 6.49
199+
CHF 6.40
249+
CHF 6.31
499+
CHF 6.23
999+
CHF 6.06
Share this product
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 3.2mm
Technical
Technical
| Inside diameter | 35mm |
|---|---|
| Outside diameter | 55mm |
| B | 3.2mm |
| B1 | 4mm |
| D1 | 42mm |
| Ea | 39mm |
| Eb | 51mm |
| Weight | 27 g |
| Dynamic load | 17800 N |
| Static load | 81000 N |
| Fatigue load limit | 8300 N |
| Limiting speed | 6500 rpm |
| Reference speed | 3100 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS3552">Click Here AS3552 |
