SKU: AY30-NPP-B-INA

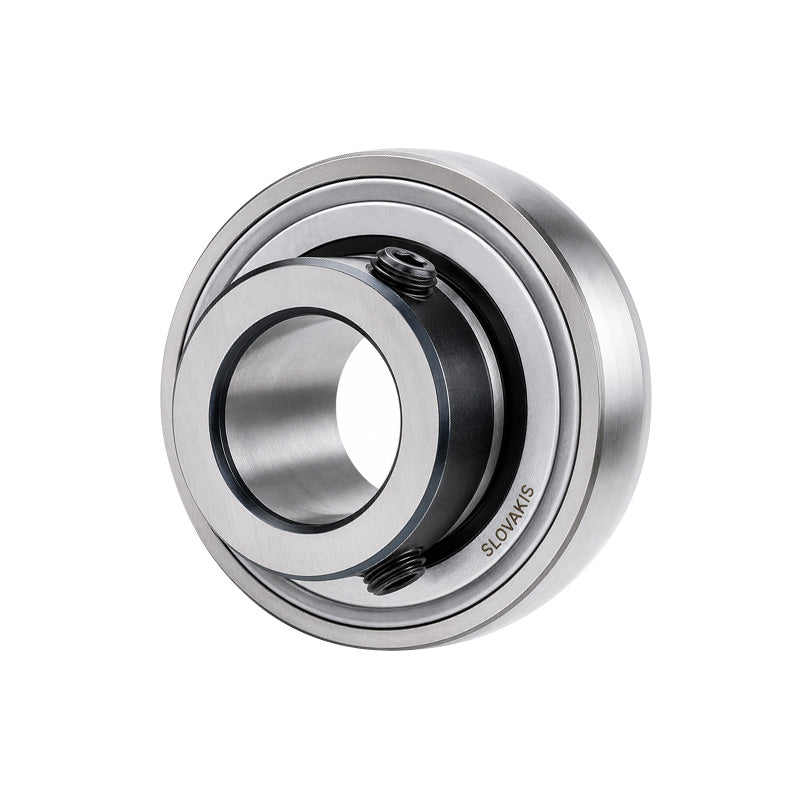

INA AY30XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Grub Screws 30x62x30mm
INA AY30XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Grub Screws 30x62x30mm
Regular price
CHF 25.64
ex VAT
Regular price
Sale price
CHF 25.64
ex VAT
In stock
Price Break
10+
CHF 22.82
19+
CHF 21.54
29+
CHF 21.28
39+
CHF 21.02
49+
CHF 20.77
74+
CHF 20.51
99+
CHF 19.23
199+
CHF 18.97
249+
CHF 18.72
499+
CHF 18.46
999+
CHF 17.95
Couldn't load pickup availability
Description
Description
|
INA AY..NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 30mm
- Type:
- Spherical Outer
Technical
Technical
| d | 30mm |
|---|---|
| Dsp | 62mm |
| B | 30mm |
| A | 5.8mm |
| C | 18mm |
| d1 | 39.4mm |
| d2 | 37.3mm |
| S | 9mm |
| W | 3mm |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.25 kg |
