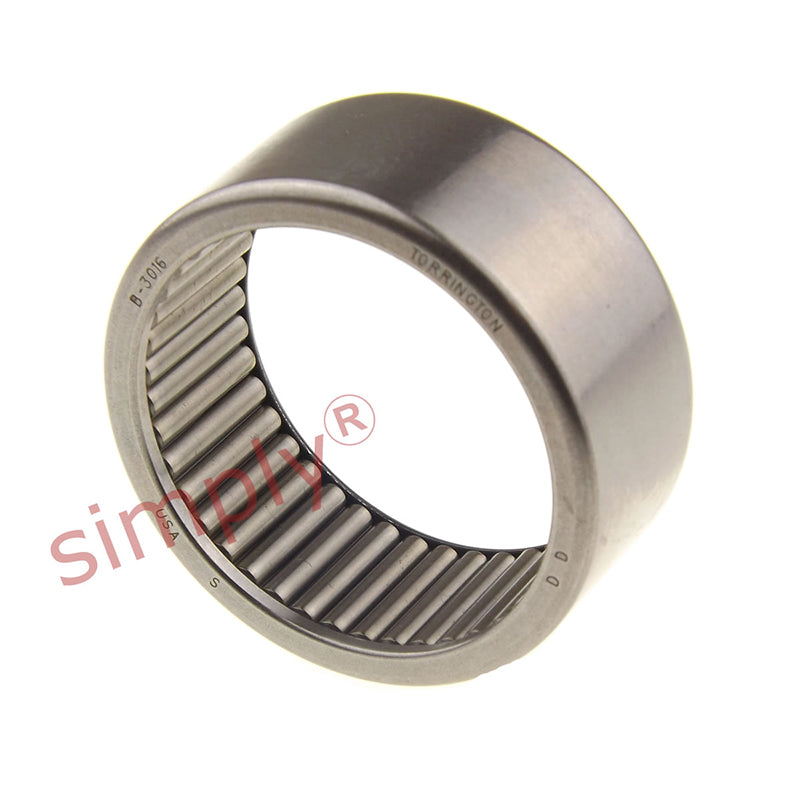

• Major Brand B3016 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-7/8x2-1/4x1 inch
1 1

SKU: B-3016

Major Brand B3016 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-7/8x2-1/4x1 inch

Major Brand B3016 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-7/8x2-1/4x1 inch
CHF 28.00 ex VAT
CHF 28.00 ex VAT
Sale Sold out

In stock

Price Break
5+ CHF 21.70
9+ CHF 20.48
19+ CHF 20.24
29+ CHF 20.00
49+ CHF 19.75
74+ CHF 19.51
99+ CHF 18.29
199+ CHF 18.05
249+ CHF 17.80
499+ CHF 17.56
999+ CHF 17.07
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction.
Benefits: Compact space saving design, High load capacity.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
47.63mm = 1.875 (1-7/8) inch
Outside Diameter:
57.15mm = 2.25 (2-1/4) inch
Width:
25.4mm = 1 inch
Technical
Inside Diameter 47.63mm = 1.875 inch
Outside Diameter 57.15mm = 2.25 inch
Width 25.4mm = 1 inch
Dynamic load C 56 kN
Static load Co 130 kN
S max 47.625mm = 1.875 inch
S min 47.612mm = 1.8745 inch
H max 57.163mm = 2.2505 inch
H min 57.137mm = 2.2495 inch
