SKU: BAM.1112.EU

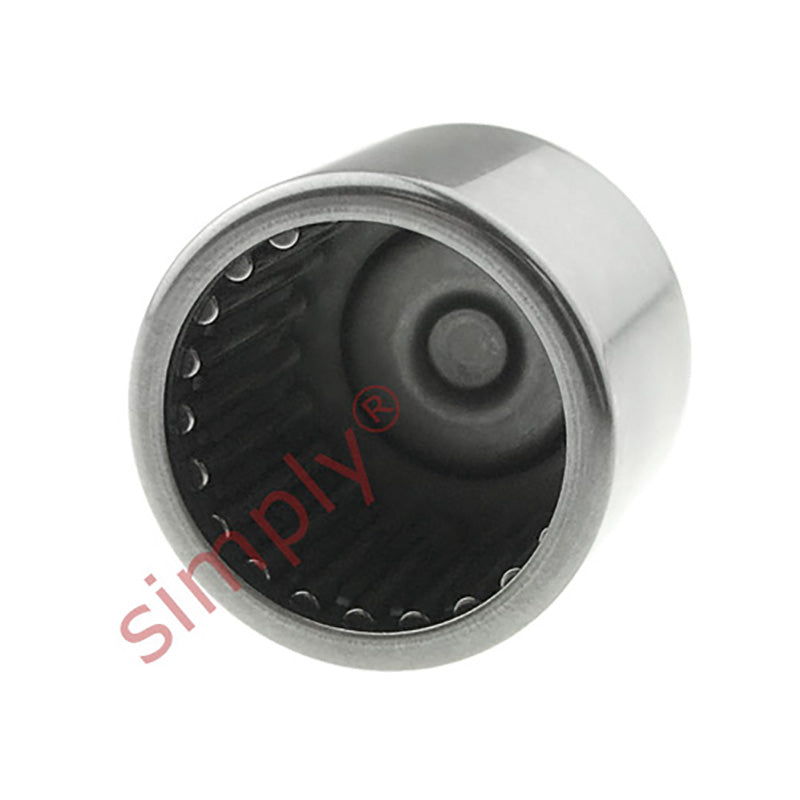

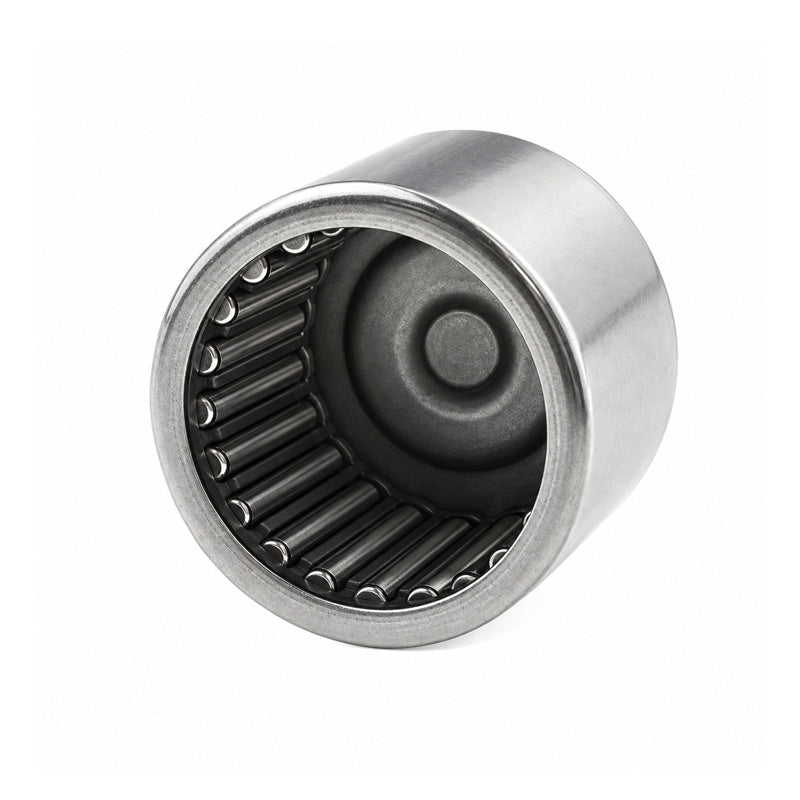

BAM1112 Budget Imperial Closed End Needle Roller Bearing 11/16x7/8x3/4 inch
BAM1112 Budget Imperial Closed End Needle Roller Bearing 11/16x7/8x3/4 inch
Regular price
CHF 6.82
ex VAT
Regular price
Sale price
CHF 6.82
ex VAT
Equivalent to: MJ11121 BCE1112
In stock
Price Break
10+
CHF 6.07
19+
CHF 5.73
29+
CHF 5.66
39+
CHF 5.59
49+
CHF 5.52
74+
CHF 5.46
99+
CHF 5.12
199+
CHF 5.05
249+
CHF 4.98
499+
CHF 4.91
999+
CHF 4.77
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ11121 BCE1112
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Outside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 11/16 inch |
|---|---|
| D | 7/8 inch |
| C | 3/4 inch |
| t2 max | 1.3mm |
| Dynamic Load C | 10200 N |
| Static Load C0 | 17000 N |
| Weight | 15.4 g |
