SKU: BAM.1212

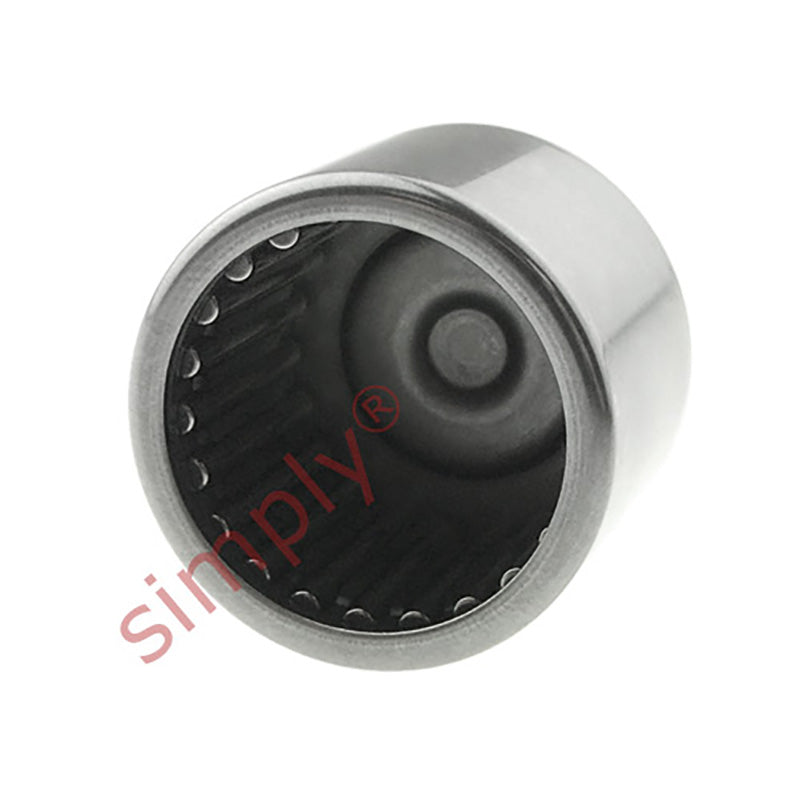

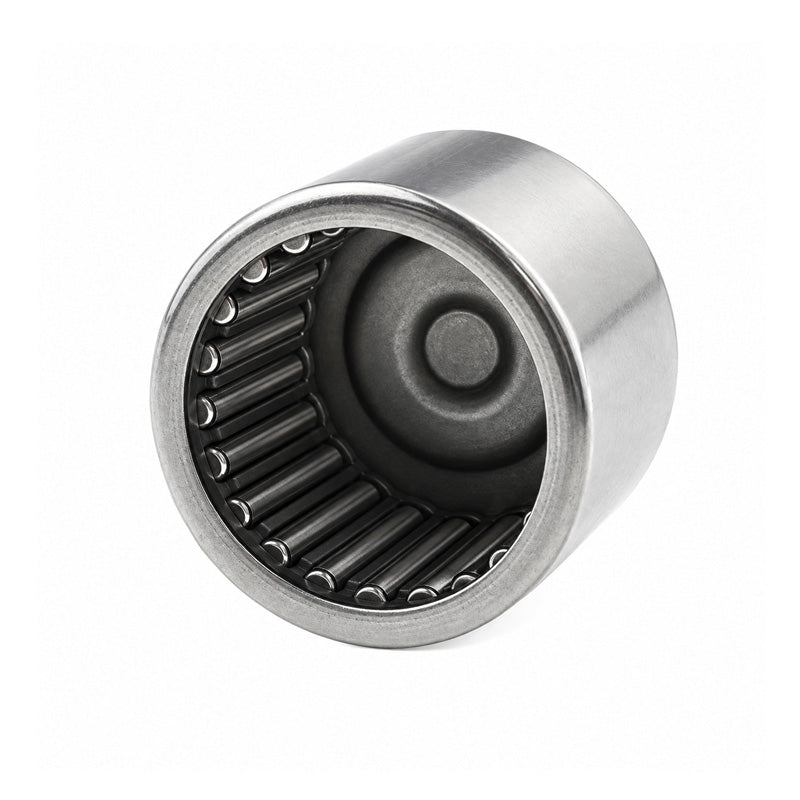

BAM1212 Imperial Closed End Needle Roller Bearing 3/4x1x3/4 inch
BAM1212 Imperial Closed End Needle Roller Bearing 3/4x1x3/4 inch
Regular price
CHF 6.03
ex VAT
Regular price
Sale price
CHF 6.03
ex VAT
Equivalent to: MJ12121 BCE1212
In stock
Price Break
10+
CHF 5.37
19+
CHF 5.07
29+
CHF 5.00
39+
CHF 4.94
49+
CHF 4.88
74+
CHF 4.82
99+
CHF 4.52
199+
CHF 4.46
249+
CHF 4.40
499+
CHF 4.34
999+
CHF 4.22
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ12121 BCE1212
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 25.4mm = 1 inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 3/4 inch |
|---|---|
| D | 1 inch |
| C | 3/4 inch |
| t2 max | 1.3mm |
| Dynamic Load C | 11900 N |
| Static Load C0 | 17700 N |
| Weight | 22 g |
